KA5H0380RTU

AMI Semiconductor / ON Semiconductor

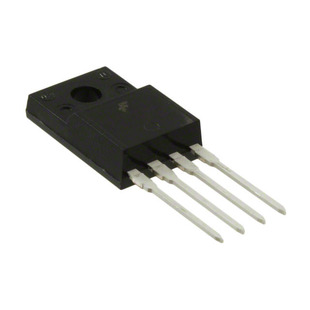

Image may be representation. See specifications for product details.

Product Overview

Part Number:	KA5H0380RTU
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	IC SWIT PWM CM OVP UVLO HV TO220
Datasheets:	KA5H0380RTU.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	41507 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 41507 pcs

Reference Price (In US Dollars)

1 pcs: $0.716

10 pcs: $0.642

100 pcs: $0.516

500 pcs: $0.424

1000 pcs: $0.351

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.716

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of KA5H0380RTU

Part Number	KA5H0380RTU	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	IC SWIT PWM CM OVP UVLO HV TO220	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	41507 pcs	Data sheet	KA5H0380RTU.pdf
Voltage - Supply (Vcc/Vdd)	9 V ~ 30 V	Voltage - Start Up	15V
Voltage - Breakdown	800V	Topology	Flyback, Forward
Supplier Device Package	TO-220F-4L	Series	FPS™
Packaging	Tube	Package / Case	TO-220-4 Full Pack
Output Isolation	-	Other Names	KA5H0380RTU-ND KA5H0380RTUFS
Operating Temperature	-40°C ~ 85°C (TA)	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Internal Switch(s)	Yes	Frequency - Switching	100kHz
Fault Protection	Current Limiting, Over Temperature, Over Voltage	Duty Cycle	67%
Detailed Description	Converter Offline Flyback, Forward Topology 100kHz TO-220F-4L	Control Features	-
Base Part Number	KA5H0380
