26-60-5120

Affinity Medical Technologies - a Molex company

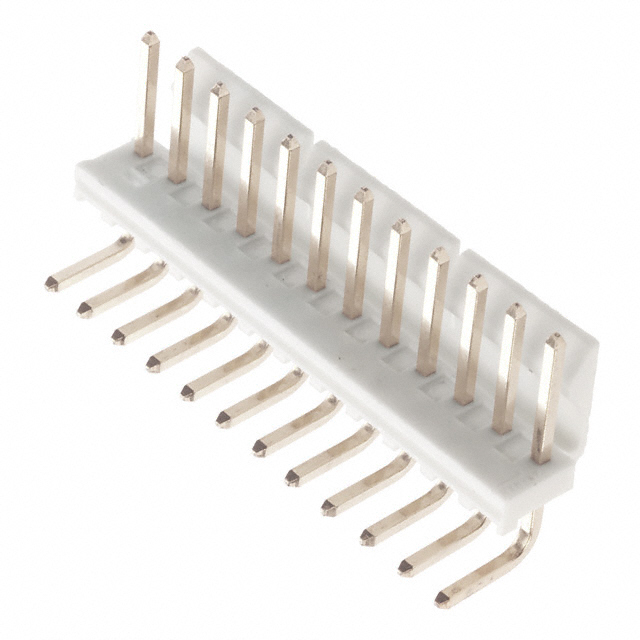

Image may be representation. See specifications for product details.

Product Overview

Part Number:	26-60-5120
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 12POS .156 R/A TIN
Datasheets:	1.26-60-5120.pdf 2.26-60-5120.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	40824 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 40824 pcs

Reference Price (In US Dollars)

1 pcs: $0.759

10 pcs: $0.688

100 pcs: $0.59

500 pcs: $0.492

1000 pcs: $0.421

5000 pcs: $0.374

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.759

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 26-60-5120

Part Number	26-60-5120	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 12POS .156 R/A TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	40824 pcs	Data sheet	1.26-60-5120.pdf 2.26-60-5120.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 1 Wall
Series	KK 41792	Row Spacing - Mating	-
Pitch - Mating	0.156" (3.96mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	0026605120 26-60-5120-P 26605120 41792-0012 WM4650
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	12
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyester, Glass Filled
Insulation Height	0.394" (10.00mm)	Insulation Color	Natural
Ingress Protection	-	Features	-
Fastening Type	Friction Lock	Detailed Description	Connector Header Through Hole, Right Angle 12 position 0.156" (3.96mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Square	Contact Material	-
Contact Length - Post	0.156" (3.96mm)	Contact Length - Mating	0.450" (11.43mm)
Contact Finish Thickness - Post	60.0µin (1.52µm)	Contact Finish Thickness - Mating	60.0µin (1.52µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header	Applications	Automotive, General Purpose, Industrial, Medical, Telecommunications
