1-796866-0

Agastat Relays / TE Connectivity

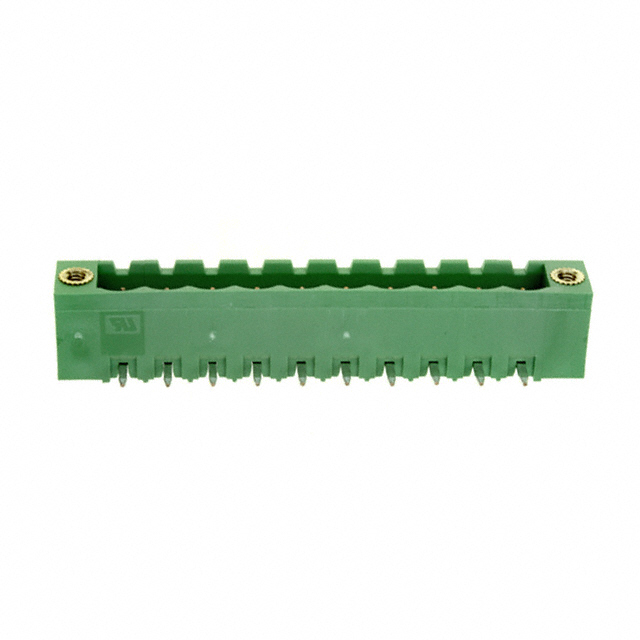

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1-796866-0
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	TERM BLOCK HDR 10POS 5.08MM
Datasheets:	1.1-796866-0.pdf 2.1-796866-0.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	15548 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 15548 pcs

Reference Price (In US Dollars)

1 pcs: $2.283

10 pcs: $1.74

25 pcs: $1.63

50 pcs: $1.449

100 pcs: $1.417

250 pcs: $1.307

500 pcs: $1.181

1000 pcs: $1.047

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.283

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1-796866-0

Part Number	1-796866-0	Manufacturer	Agastat Relays / TE Connectivity
Description	TERM BLOCK HDR 10POS 5.08MM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	15548 pcs	Data sheet	1.1-796866-0.pdf 2.1-796866-0.pdf
Wire Strip Length	-	Wire Gauge or Range - mm²	-
Wire Gauge or Range - AWG	-	Voltage - UL	300V
Type	Header, Male Pins, Shrouded (4 Side)	Torque - Screw	-
Termination Style	Solder	Series	Buchanan
Screw Size	-	Positions Per Level	10
Plug Wire Entry	-	Pitch	0.200" (5.08mm)
Packaging	Bulk	Other Names	1-796866-0-ND 17968660 A98456
Operating Temperature	-40°C ~ 110°C	Number of Positions	10
Number of Levels	1	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material Flammability Rating	UL94 V-0
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Height	0.329" (8.36mm)
Ingress Protection	-	Housing Material	Polyamide (PA66), Nylon 6/6
Header Orientation	90°, Right Angle	Features	Mating Flange
Detailed Description	10 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole	Current - UL	15A
Current - IEC	-	Contact Tail Length	0.138" (3.50mm)
Contact Mating Finish	Tin	Contact Material	Copper Alloy
Color	Green
