1376020-1

Agastat Relays / TE Connectivity

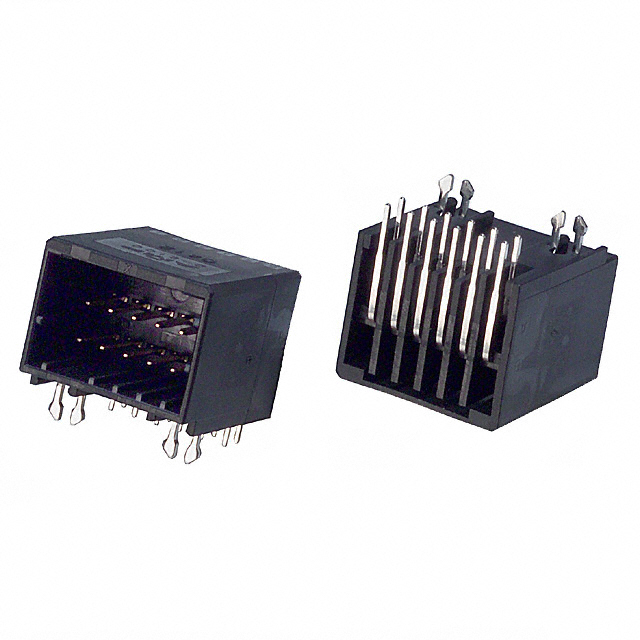

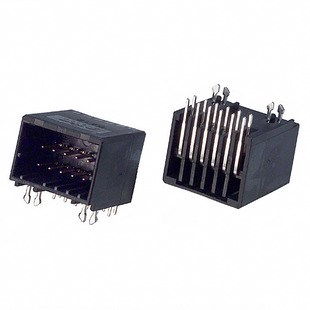

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1376020-1
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER 12POS R/A DUAL KEY-X
Datasheets:	1376020-1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	24665 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 24665 pcs

Reference Price (In US Dollars)

1 pcs: $1.261

10 pcs: $1.21

100 pcs: $1.008

500 pcs: $0.857

1000 pcs: $0.731

5000 pcs: $0.655

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$1.261

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1376020-1

Part Number	1376020-1	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER 12POS R/A DUAL KEY-X	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	24665 pcs	Data sheet	1376020-1.pdf
Voltage Rating	250VAC	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	Dynamic D-2100	Row Spacing - Mating	-
Pitch - Mating	0.098" (2.50mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	13760201 A29824
Operating Temperature	-55°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	12
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Thermoplastic, Polyester, Glass Filled
Insulation Height	0.579" (14.70mm)	Insulation Color	Black
Ingress Protection	-	Features	Board Lock
Fastening Type	Detent Lock	Detailed Description	Connector Header Through Hole, Right Angle 12 position 0.098" (2.50mm)
Current Rating	5A	Contact Type	Tab
Contact Shape	Rectangular	Contact Material	Copper Alloy
Contact Length - Post	0.134" (3.40mm)	Contact Length - Mating	-
Contact Finish Thickness - Post	-	Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold
Connector Type	Header	Applications	General Purpose, Industrial
