1825136-7

Agastat Relays / TE Connectivity

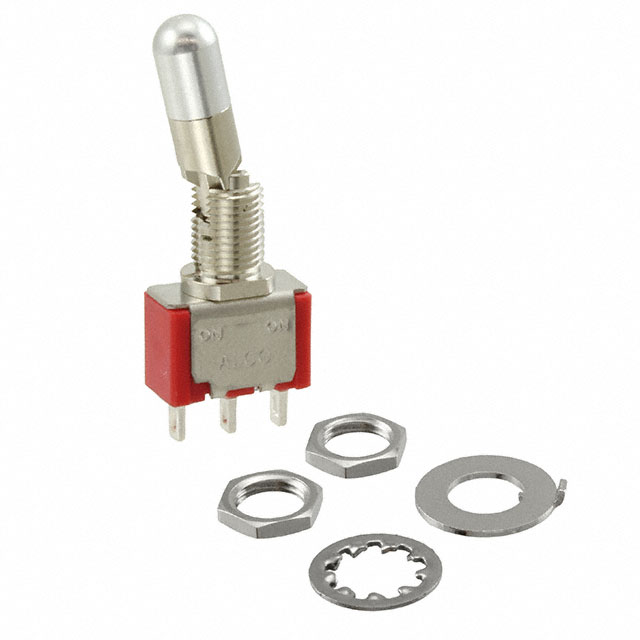

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1825136-7
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	SWITCH TOGGLE SPDT 5A 120V
Datasheets:	1.1825136-7.pdf 2.1825136-7.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	16814 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 16814 pcs

Reference Price (In US Dollars)

1 pcs: $2.269

10 pcs: $2.155

25 pcs: $2.099

50 pcs: $2.042

100 pcs: $1.985

250 pcs: $1.872

500 pcs: $1.588

1000 pcs: $1.503

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.269

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1825136-7

Part Number	1825136-7	Manufacturer	Agastat Relays / TE Connectivity
Description	SWITCH TOGGLE SPDT 5A 120V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	16814 pcs	Data sheet	1.1825136-7.pdf 2.1825136-7.pdf
Voltage Rating - DC	28V	Voltage Rating - AC	120V
Termination Style	Solder Lug	Switch Function	On-On
Series	Gemini A	Panel Cutout Dimensions	Circular - 6.35mm Dia
Packaging	Bulk	Other Names	1825136-7-ND 450-2170 A101KZQ04 A101KZQ04-ND
Operating Temperature	-30°C ~ 85°C	Mounting Type	Panel Mount
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	Epoxy Sealed Terminals
Electrical Life	6,000 Cycles	Detailed Description	Toggle Switch SPDT Panel Mount
Current Rating	5A (AC/DC)	Circuit	SPDT
Bushing Thread	1/4-40	Actuator Type	Locking Lever
Actuator Material	Brass, Nickel Plated	Actuator Length	16.51mm
