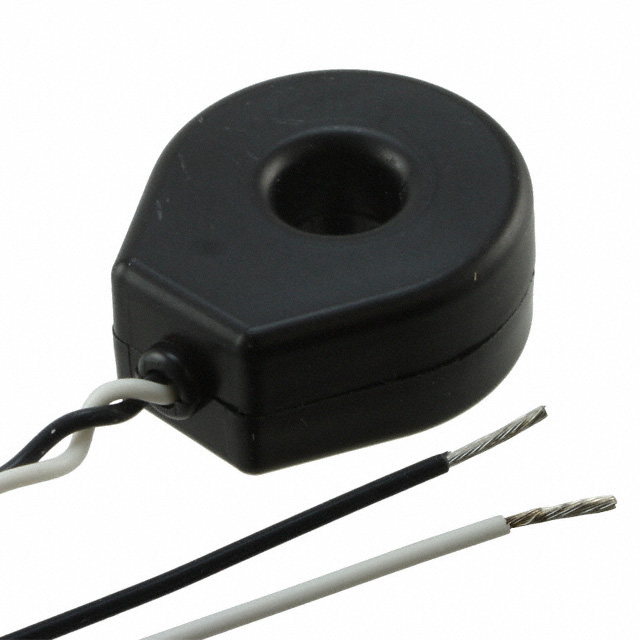

MODEL 19

CR Magnetics, Inc.

Image may be representation. See specifications for product details.

Product Overview

Part Number:	MODEL 19
Manufacturer/Brand:	CR Magnetics, Inc.
Product description	CURR SENSE XFMR IN-LINE
Datasheets:	MODEL 19.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	8158 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 8158 pcs

Reference Price (In US Dollars)

1 pcs: $4.236

10 pcs: $3.128

25 pcs: $2.887

50 pcs: $2.791

100 pcs: $2.714

250 pcs: $2.675

500 pcs: $2.646

1000 pcs: $2.598

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$4.236

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of MODEL 19

Part Number	MODEL 19	Manufacturer	CR Magnetics, Inc.
Description	CURR SENSE XFMR IN-LINE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	8158 pcs	Data sheet	MODEL 19.pdf
Weight	-	Type	Non-Invasive (Solid Core)
Turns Ratio - Primary:Secondary	-	Termination Style	Wire Leads
Size / Dimension	1.039" L x 0.949" W (26.40mm x 24.10mm)	Series	PH
Ratings	-	Packaging	Bulk
Other Names	582-1037 MODEL19	Mounting Type	Free Hanging (In-Line)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	0.461" (11.70mm)	Frequency Range	50Hz ~ 1kHz
Energy Time (E.T.)	-	Detailed Description	Current Sense Transformer 50Hz ~ 1kHz Free Hanging (In-Line)
DC Resistance (DCR)	-	Current Ratio	-
