ES225N-Z

Copal Electronics

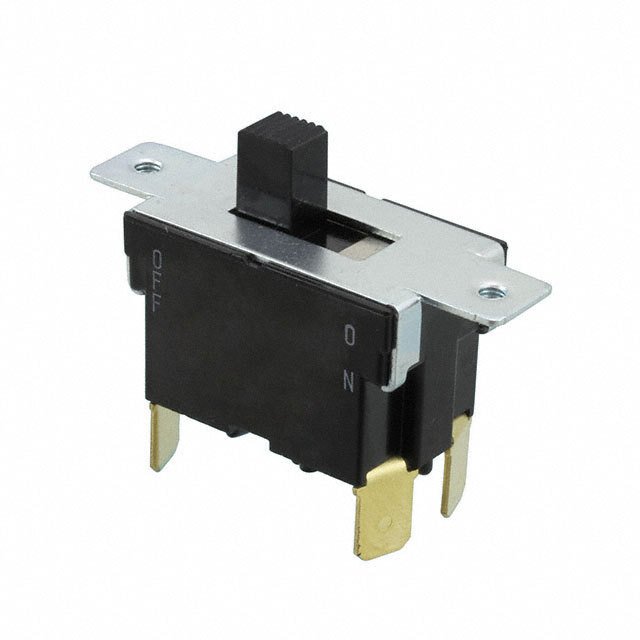

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ES225N-Z
Manufacturer/Brand:	Copal Electronics
Product description	SWITCH SLIDE DPDT 25A 125V
Datasheets:	ES225N-Z.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	10617 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 10617 pcs

Reference Price (In US Dollars)

1 pcs: $3.625

10 pcs: $3.583

25 pcs: $3.54

50 pcs: $3.238

100 pcs: $3.108

250 pcs: $2.935

500 pcs: $2.59

1000 pcs: $2.331

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$3.625

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ES225N-Z

Part Number	ES225N-Z	Manufacturer	Copal Electronics
Description	SWITCH SLIDE DPDT 25A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	10617 pcs	Data sheet	ES225N-Z.pdf
Voltage Rating - AC	125V	Termination Style	Quick Connect - 0.250" (6.3mm)
Switch Travel	8.00mm	Switch Function	On-On
Series	ES	Packaging	Bulk
Other Names	563-1615	Operating Temperature	-
Operating Force	-	Mounting Type	Panel Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	-
Electrical Life	20,000 Cycles	Detailed Description	Slide Switch DPDT Panel Mount
Current Rating	25A (AC)	Contact Timing	Non-Shorting (BBM)
Contact Material	-	Contact Finish	-
Circuit	DPDT	Actuator Type	Standard
Actuator Material	-	Actuator Length	9.00mm
