ZXMD63N02XTA

Diodes Incorporated

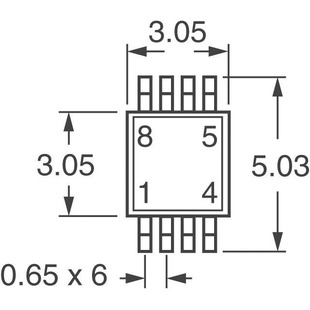

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ZXMD63N02XTA
Manufacturer/Brand:	Diodes Incorporated
Product description	MOSFET 2N-CH 20V 2.5A 8-MSOP
Datasheets:	ZXMD63N02XTA.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	45325 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 45325 pcs

Reference Price (In US Dollars)

1 pcs: $0.657

10 pcs: $0.58

100 pcs: $0.459

500 pcs: $0.356

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.657

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ZXMD63N02XTA

Part Number	ZXMD63N02XTA	Manufacturer	Diodes Incorporated
Description	MOSFET 2N-CH 20V 2.5A 8-MSOP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	45325 pcs	Data sheet	ZXMD63N02XTA.pdf
Vgs(th) (Max) @ Id	3V @ 250µA	Supplier Device Package	8-MSOP
Series	-	Rds On (Max) @ Id, Vgs	130 mOhm @ 1.7A, 4.5V
Power - Max	1.04W	Packaging	Cut Tape (CT)
Package / Case	8-TSSOP, 8-MSOP (0.118", 3.00mm Width)	Other Names	ZXMD63N02X ZXMD63N02XCT
Operating Temperature	-55°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds	700pF @ 15V	Gate Charge (Qg) (Max) @ Vgs	6nC @ 4.5V
FET Type	2 N-Channel (Dual)	FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	20V	Detailed Description	Mosfet Array 2 N-Channel (Dual) 20V 2.5A 1.04W Surface Mount 8-MSOP
Current - Continuous Drain (Id) @ 25°C	2.5A
