100DP1T1B1M53QE

E-Switch

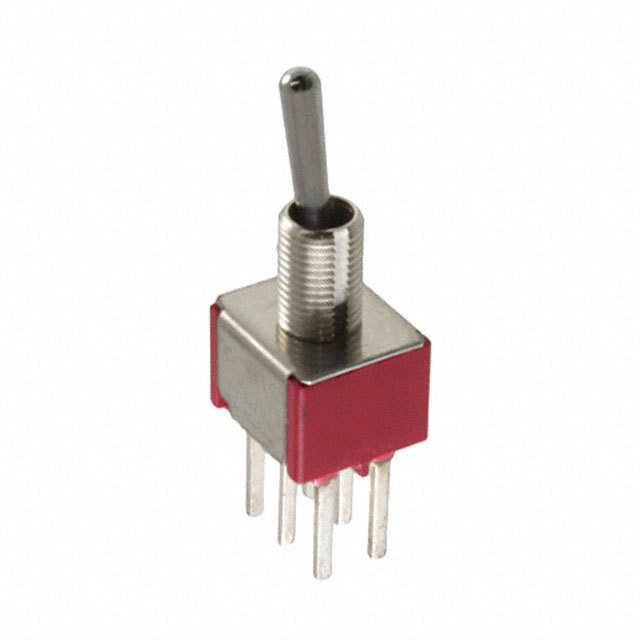

Image may be representation. See specifications for product details.

Product Overview

Part Number:	100DP1T1B1M53QE
Manufacturer/Brand:	E-Switch
Product description	SWITCH TOGGLE DPDT 5A 120V
Datasheets:	100DP1T1B1M53QE.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	27421 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 27421 pcs

Reference Price (In US Dollars)

1 pcs: $1.173

10 pcs: $1.123

25 pcs: $1.074

50 pcs: $1.025

100 pcs: $0.928

250 pcs: $0.854

500 pcs: $0.781

1000 pcs: $0.683

5000 pcs: $0.659

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.173

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 100DP1T1B1M53QE

Part Number	100DP1T1B1M53QE	Manufacturer	E-Switch
Description	SWITCH TOGGLE DPDT 5A 120V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	27421 pcs	Data sheet	100DP1T1B1M53QE.pdf
Voltage Rating - DC	28V	Voltage Rating - AC	120V
Termination Style	Wire Wrap	Switch Function	On-On
Series	100	Panel Cutout Dimensions	Circular - 6.35mm Dia
Packaging	Bulk	Operating Temperature	-30°C ~ 85°C
Mounting Type	Panel Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	Epoxy Sealed Terminals
Electrical Life	40,000 Cycles	Detailed Description	Toggle Switch DPDT Panel Mount
Current Rating	5A (AC/DC)	Circuit	DPDT
Bushing Thread	1/4-40	Actuator Type	Standard Round
Actuator Material	Brass, Chrome Plated	Actuator Length	10.41mm
