E-Switch

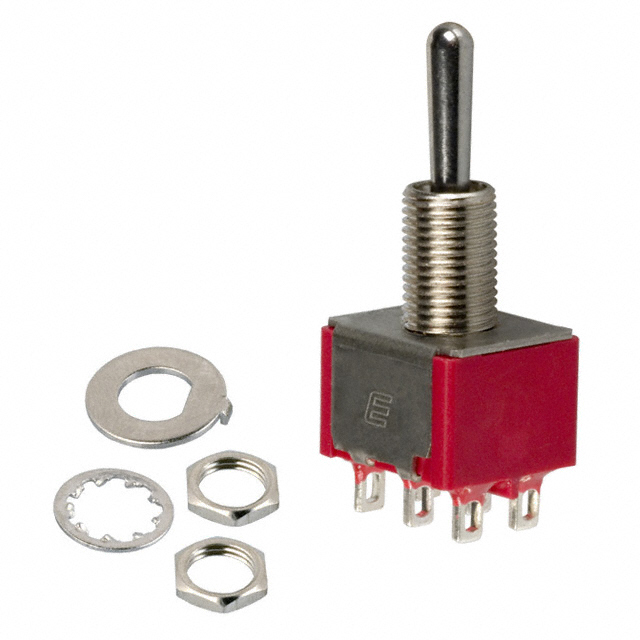

| Part Number | 100DP5T1B1M1QEH | Manufacturer | E-Switch |
|---|---|---|---|
| Description | SWITCH TOGGLE DPDT 5A 120V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 25150 pcs | Data sheet | 1.100DP5T1B1M1QEH.pdf2.100DP5T1B1M1QEH.pdf |
| Voltage Rating - DC | 28V | Voltage Rating - AC | 120V |
| Termination Style | Solder Lug | Switch Function | On-Off-Mom |
| Series | 100 | Panel Cutout Dimensions | Circular - 6.35mm Dia |
| Packaging | Bulk | Other Names | 100DP5T1B1M1QE EG2421 T125003 |
| Operating Temperature | -30°C ~ 85°C | Mounting Type | Panel Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Illumination Voltage (Nominal) | - |
| Illumination Type, Color | - | Illumination | Non-Illuminated |
| Features | Epoxy Sealed Terminals | Electrical Life | 40,000 Cycles |
| Detailed Description | Toggle Switch DPDT Panel Mount | Current Rating | 5A (AC/DC) |
| Circuit | DPDT | Bushing Thread | 1/4-40 |
| Actuator Type | Standard Round | Actuator Material | Brass, Chrome Plated |
| Actuator Length | 10.41mm |
