TL3301DF160QJ

E-Switch

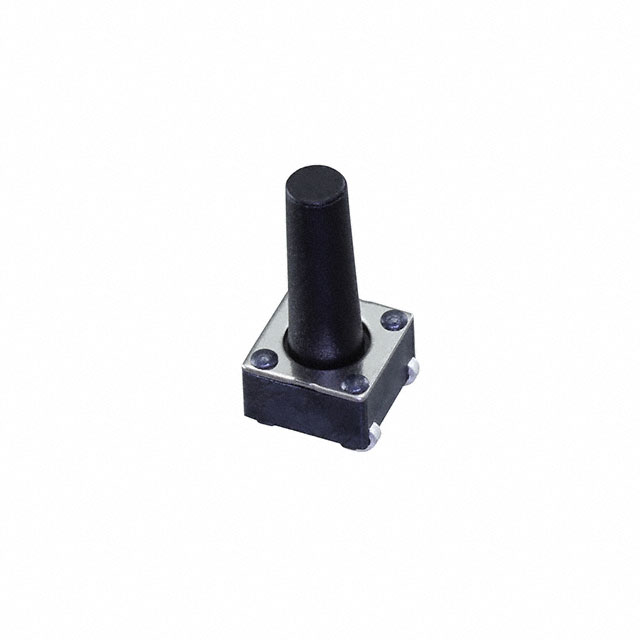

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TL3301DF160QJ
Manufacturer/Brand:	E-Switch
Product description	SWITCH TACTILE SPST-NO 0.05A 12V
Datasheets:	1.TL3301DF160QJ.pdf 2.TL3301DF160QJ.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	176042 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 176042 pcs

Reference Price (In US Dollars)

1 pcs: $0.169

10 pcs: $0.163

25 pcs: $0.16

50 pcs: $0.154

100 pcs: $0.133

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.169

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TL3301DF160QJ

Part Number	TL3301DF160QJ	Manufacturer	E-Switch
Description	SWITCH TACTILE SPST-NO 0.05A 12V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	176042 pcs	Data sheet	1.TL3301DF160QJ.pdf 2.TL3301DF160QJ.pdf
Termination Style	J Lead	Switch Travel	0.25mm
Switch Function	Off-Mom	Series	TL3301
Packaging	Cut Tape (CT)	Outline	6.00mm x 6.00mm
Other Names	EG5464CT	Operating Temperature	-20°C ~ 70°C
Operating Force	160gf	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	100,000 Cycles
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	-
Detailed Description	Tactile Switch SPST-NO Top Actuated Surface Mount	Contact Rating @ Voltage	0.05A @ 12VDC
Circuit	SPST-NO	Actuator Type	Standard
Actuator Orientation	Top Actuated	Actuator Material	Polyamide (PA), Nylon
Actuator Length, Right Angle	-	Actuator Height off PCB, Vertical	13.00mm
