B82801B0184A030

EPCOS

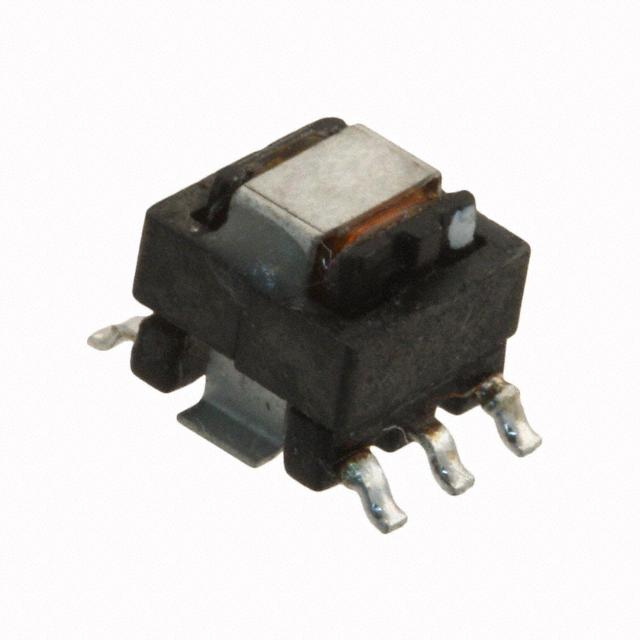

Image may be representation. See specifications for product details.

Product Overview

Part Number:	B82801B0184A030
Manufacturer/Brand:	EPCOS
Product description	CURR SENSE XFMR 1:30 SMD
Datasheets:	B82801B0184A030.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	33449 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 33449 pcs

Reference Price (In US Dollars)

1 pcs: $1.026

10 pcs: $0.83

25 pcs: $0.671

50 pcs: $0.629

100 pcs: $0.60

250 pcs: $0.583

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.026

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of B82801B0184A030

Part Number	B82801B0184A030	Manufacturer	EPCOS
Description	CURR SENSE XFMR 1:30 SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	33449 pcs	Data sheet	B82801B0184A030.pdf
Weight	0.014 oz (0.4g)	Type	Invasive
Turns Ratio - Primary:Secondary	1:30	Termination Style	Gull Wing
Size / Dimension	0.280" L x 0.320" W (7.11mm x 8.13mm)	Series	B82801B
Ratings	-	Packaging	Original-Reel®
Other Names	495-4044-6	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance	180µH	Height - Seated (Max)	0.200" (5.08mm)
Frequency Range	50kHz ~ 1MHz	Energy Time (E.T.)	-
Detailed Description	1:30 Current Sense Transformer 50kHz ~ 1MHz 0.8 mOhm Primary, 870 mOhm Secondary 180µH Surface Mount	DC Resistance (DCR)	0.8 mOhm Primary, 870 mOhm Secondary
Current Ratio	-
