B82801C1265A150

EPCOS

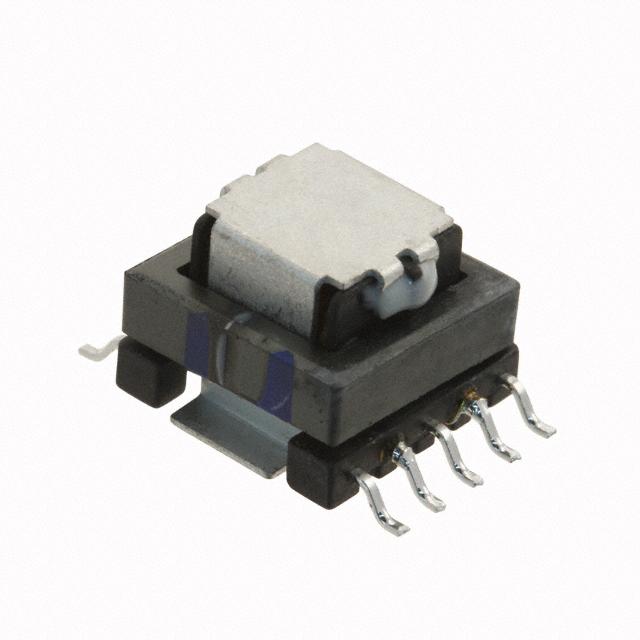

Image may be representation. See specifications for product details.

Product Overview

Part Number:	B82801C1265A150
Manufacturer/Brand:	EPCOS
Product description	CURR SENSE XFMR 1:150 SMD
Datasheets:	B82801C1265A150.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	37437 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 37437 pcs

Reference Price (In US Dollars)

200 pcs: $0.806

400 pcs: $0.782

600 pcs: $0.759

1000 pcs: $0.735

5000 pcs: $0.676

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.806

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of B82801C1265A150

Part Number	B82801C1265A150	Manufacturer	EPCOS
Description	CURR SENSE XFMR 1:150 SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	37437 pcs	Data sheet	B82801C1265A150.pdf
Weight	0.011 lb (4.99g)	Type	Invasive
Turns Ratio - Primary:Secondary	1:150	Termination Style	Gull Wing
Size / Dimension	0.560" L x 0.530" W (14.22mm x 13.46mm)	Series	B82801C
Ratings	-	Packaging	Tape & Reel (TR)
Other Names	495-4443-2	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance	12.6mH	Height - Seated (Max)	0.394" (10.00mm)
Frequency Range	50kHz ~ 500kHz	Energy Time (E.T.)	-
Detailed Description	1:150 Current Sense Transformer 50kHz ~ 500kHz 0.28 mOhm Primary, 2.2 Ohm Secondary 12.6mH Surface Mount	DC Resistance (DCR)	0.28 mOhm Primary, 2.2 Ohm Secondary
Current Ratio	-
