DG303BDJ-E3

Electro-Films (EFI) / Vishay

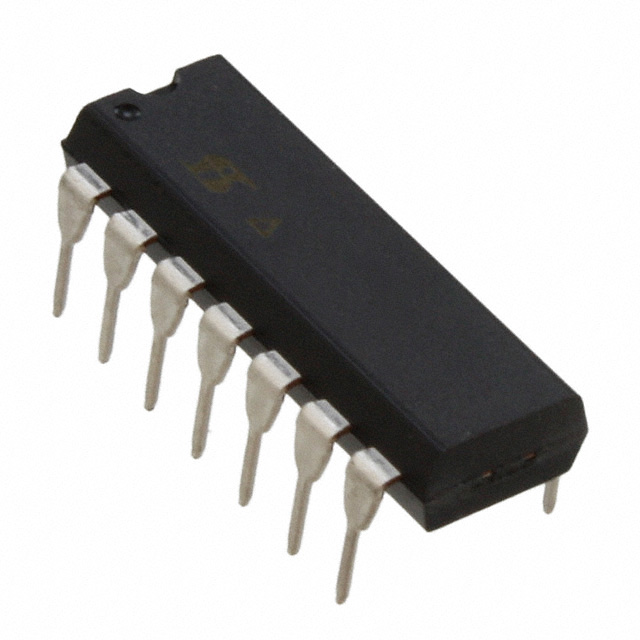

Image may be representation. See specifications for product details.

Product Overview

Part Number:	DG303BDJ-E3
Manufacturer/Brand:	Electro-Films (EFI) / Vishay
Product description	IC SWITCH CMOS 14DIP
Datasheets:	DG303BDJ-E3.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	23498 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 23498 pcs

Reference Price (In US Dollars)

1 pcs: $1.352

10 pcs: $1.213

25 pcs: $1.147

100 pcs: $0.994

250 pcs: $0.943

500 pcs: $0.846

1000 pcs: $0.713

2500 pcs: $0.678

5000 pcs: $0.652

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.352

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of DG303BDJ-E3

Part Number	DG303BDJ-E3	Manufacturer	Electro-Films (EFI) / Vishay
Description	IC SWITCH CMOS 14DIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	23498 pcs	Data sheet	DG303BDJ-E3.pdf
Voltage - Supply, Single (V+)	-	Voltage - Supply, Dual (V±)	±15V
Switch Time (Ton, Toff) (Max)	300ns, 250ns	Switch Circuit	DPST - NO/NC
Supplier Device Package	14-PDIP	Series	-
Packaging	Tube	Package / Case	14-DIP (0.300", 7.62mm)
Other Names	DG303BDJE3	Operating Temperature	-40°C ~ 85°C (TA)
On-State Resistance (Max)	50 Ohm	Number of Circuits	2
Multiplexer/Demultiplexer Circuit	2:1	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Detailed Description	2 Circuit IC Switch 2:1 50 Ohm 14-PDIP
Current - Leakage (IS(off)) (Max)	1nA	Crosstalk	-74dB @ 500kHz
Charge Injection	8pC	Channel-to-Channel Matching (ΔRon)	-
Channel Capacitance (CS(off), CD(off))	14pF, 14pF	Base Part Number	DG303
-3db Bandwidth	-
