09642217220

HARTING

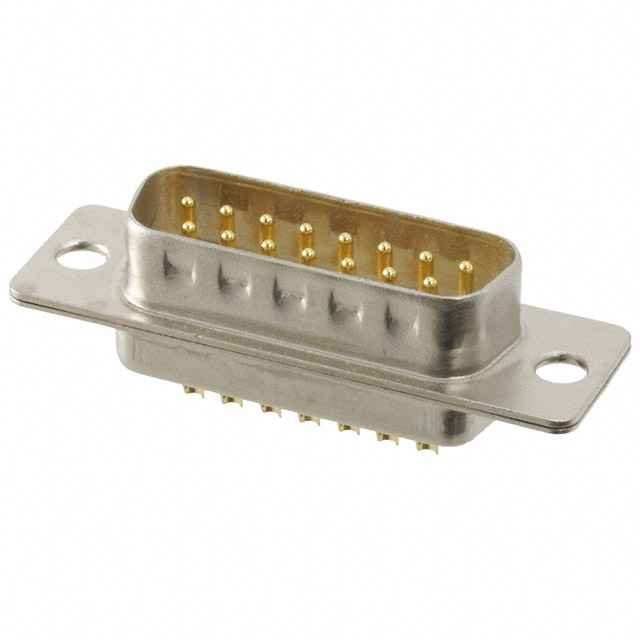

Image may be representation. See specifications for product details.

Product Overview

Part Number:	09642217220
Manufacturer/Brand:	HARTING
Product description	CONN D-SUB PLUG 15P STR SLDR CUP
Datasheets:	09642217220.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4584 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 4584 pcs

Reference Price (In US Dollars)

1 pcs: $7.067

10 pcs: $6.561

25 pcs: $5.888

50 pcs: $5.72

100 pcs: $5.047

250 pcs: $4.711

500 pcs: $4.61

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$7.067

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 09642217220

Part Number	09642217220	Manufacturer	HARTING
Description	CONN D-SUB PLUG 15P STR SLDR CUP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4584 pcs	Data sheet	09642217220.pdf
Wire Gauge	20 AWG	Voltage Rating	100V
Termination	Solder Cup	Shell Size, Connector Layout	2 (DA, A)
Shell Material, Finish	Steel, Tin Plated	Series	-
Packaging	Bulk	Other Names	1195-2401 9642217220
Operating Temperature	-55°C ~ 125°C	Number of Rows	2
Number of Positions	15	Mounting Type	Free Hanging (In-Line)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material Flammability Rating	UL94 V-0
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Housing Material	Polycyclohexylenedimethylene Terephthalate (PCT)	Flange Feature	Housing/Shell (Unthreaded)
Features	Filter, Grounding Indents	Detailed Description	15 Position D-Sub Plug, Male Pins Connector
Current Rating	7.5A	Contact Type	Signal
Contact Material	Copper Alloy	Contact Form	Machined
Contact Finish Thickness	-	Contact Finish	-
Connector Type	Plug, Male Pins	Connector Style	D-Sub
Color	Natural	Backset Spacing	-
