59170-1-S-00-A

Hamlin / Littelfuse

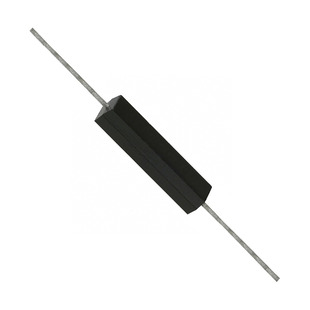

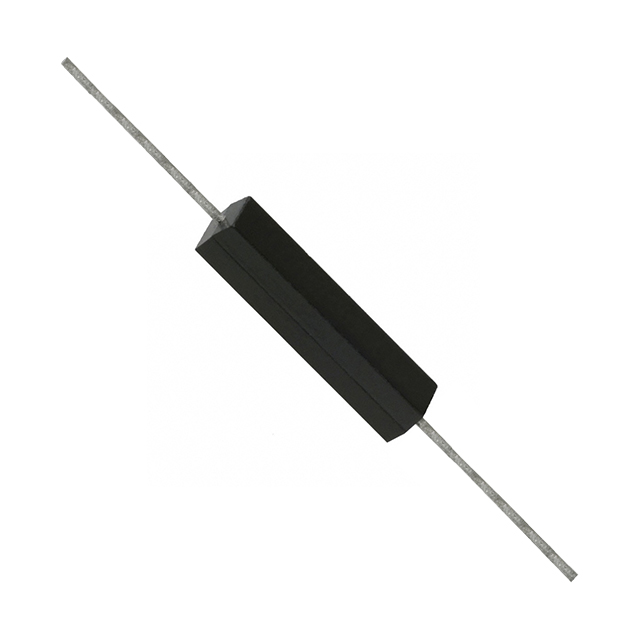

Image may be representation. See specifications for product details.

Product Overview

Part Number:	59170-1-S-00-A
Manufacturer/Brand:	Hamlin / Littelfuse
Product description	SWITCH REED SPST-NO 350MA 140V
Datasheets:	1.59170-1-S-00-A.pdf 2.59170-1-S-00-A.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	51715 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 51715 pcs

Reference Price (In US Dollars)

1 pcs: $0.692

10 pcs: $0.606

25 pcs: $0.582

50 pcs: $0.545

100 pcs: $0.533

250 pcs: $0.424

500 pcs: $0.388

1000 pcs: $0.376

5000 pcs: $0.339

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.692

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 59170-1-S-00-A

Part Number	59170-1-S-00-A	Manufacturer	Hamlin / Littelfuse
Description	SWITCH REED SPST-NO 350MA 140V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	51715 pcs	Data sheet	1.59170-1-S-00-A.pdf 2.59170-1-S-00-A.pdf
Voltage - Switching DC	200V	Voltage - Switching AC	140V
Type	Molded Body	Termination Style	Axial
Size - Body	0.450" L x 0.090" W x 0.090" H (11.43mm x 2.29mm x 2.29mm)	Series	59170
Release Time	0.5ms	Release Range	-
Power - Rated	10W	Packaging	Bulk
Other Names	591701S00A HE548	Operating Temperature	-40°C ~ 125°C
Operate Time	1ms	Operate Range	10 ~ 15AT
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Length - Overall	1.590" (40.39mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height Above Board	-	Detailed Description	Molded Body Reed Switch SPST-NO 10 ~ 15AT Operate Range 10W 350mA (AC), 500mA (DC) 140V Through Hole
Current - Switching	350mA (AC), 500mA (DC)	Current - Carry	800mA (DC)
Circuit	SPST-NO	Capacitance	0.3pF
