MDSR-7-15-20

Hamlin / Littelfuse

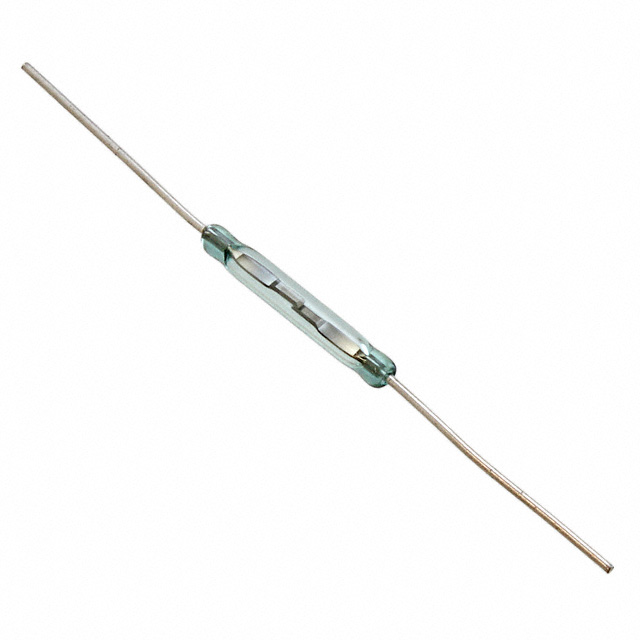

Image may be representation. See specifications for product details.

Product Overview

Part Number:	MDSR-7-15-20
Manufacturer/Brand:	Hamlin / Littelfuse
Product description	SWITCH REED SPST-NO 350MA 140V
Datasheets:	1.MDSR-7-15-20.pdf 2.MDSR-7-15-20.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	64513 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 64513 pcs

Reference Price (In US Dollars)

1 pcs: $0.492

10 pcs: $0.43

25 pcs: $0.413

50 pcs: $0.387

100 pcs: $0.379

250 pcs: $0.301

500 pcs: $0.275

1000 pcs: $0.267

5000 pcs: $0.241

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.492

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of MDSR-7-15-20

Part Number	MDSR-7-15-20	Manufacturer	Hamlin / Littelfuse
Description	SWITCH REED SPST-NO 350MA 140V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	64513 pcs	Data sheet	1.MDSR-7-15-20.pdf 2.MDSR-7-15-20.pdf
Voltage - Switching DC	200V	Voltage - Switching AC	140V
Type	Glass Body	Termination Style	Axial
Size - Body	0.071" Dia x 0.500" L (1.80mm x 12.70mm)	Series	MDSR-7
Release Time	0.2ms	Release Range	-
Power - Rated	10W	Packaging	Bulk
Other Names	HE576 MDSR-7 15-20 MDSR-7 15-20-ND MDSR71520	Operating Temperature	-40°C ~ 125°C
Operate Time	0.6ms	Operate Range	15 ~ 20AT
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Length - Overall	1.590" (40.39mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height Above Board	-	Detailed Description	Glass Body Reed Switch SPST-NO 15 ~ 20AT Operate Range 10W 350mA (AC), 500mA (DC) 140V Through Hole
Current - Switching	350mA (AC), 500mA (DC)	Current - Carry	800mA (DC)
Circuit	SPST-NO	Capacitance	0.3pF
