M22-6003005

Harwin

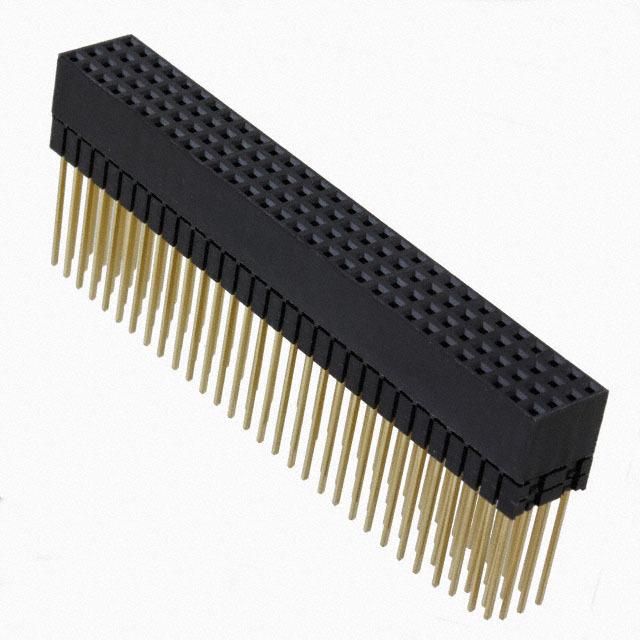

Image may be representation. See specifications for product details.

Product Overview

Part Number:	M22-6003005
Manufacturer/Brand:	Harwin
Product description	STACKTHROUGH CONNECTOR 2MM PITCH
Datasheets:	1.M22-6003005.pdf 2.M22-6003005.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	6753 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 6753 pcs

Reference Price (In US Dollars)

1 pcs: $5.226

9 pcs: $5.084

18 pcs: $4.943

27 pcs: $4.66

54 pcs: $4.519

108 pcs: $4.237

252 pcs: $3.954

504 pcs: $3.813

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$5.226

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of M22-6003005

Part Number	M22-6003005	Manufacturer	Harwin
Description	STACKTHROUGH CONNECTOR 2MM PITCH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6753 pcs	Data sheet	1.M22-6003005.pdf 2.M22-6003005.pdf
Voltage Rating	-	Termination	Solder
Series	M22	Pitch	0.079" (2.00mm)
Packaging	Tube	Other Names	952-2299 M226003005
Operating Temperature	-55°C ~ 105°C	Number of Rows	4
Number of Positions Loaded	All	Number of Positions	120
Number of Columns	-	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material Flammability Rating	UL94 V-0
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	-
Current Rating	1A	Contact Layout, Typical	-
Contact Finish Thickness	Flash	Contact Finish	Gold
Connector Usage	-	Connector Type	Stackthrough, Unkeyed (PC/104)
Connector Style	PC/104 Plus	Color	Black
