IXYH40N120B3D1

IXYS Corporation

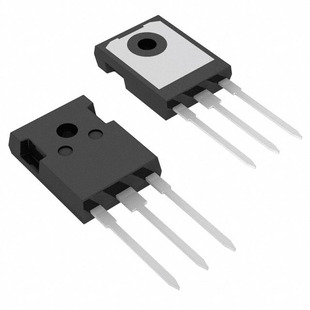

Image may be representation. See specifications for product details.

Product Overview

Part Number:	IXYH40N120B3D1
Manufacturer/Brand:	IXYS Corporation
Product description	IGBT 1200V 86A 480W TO247
Datasheets:	IXYH40N120B3D1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	10076 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 10076 pcs

Reference Price (In US Dollars)

1 pcs: $3.273

10 pcs: $2.946

30 pcs: $2.684

120 pcs: $2.422

270 pcs: $2.226

510 pcs: $2.029

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.273

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of IXYH40N120B3D1

Part Number	IXYH40N120B3D1	Manufacturer	IXYS Corporation
Description	IGBT 1200V 86A 480W TO247	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	10076 pcs	Data sheet	IXYH40N120B3D1.pdf
Voltage - Collector Emitter Breakdown (Max)	1200V	Vce(on) (Max) @ Vge, Ic	2.9V @ 15V, 40A
Test Condition	600V, 40A, 10 Ohm, 15V	Td (on/off) @ 25°C	22ns/177ns
Switching Energy	2.7mJ (on), 1.6mJ (off)	Supplier Device Package	TO-247 (IXYH)
Series	GenX3™, XPT™	Reverse Recovery Time (trr)	100ns
Power - Max	480W	Packaging	Tube
Package / Case	TO-247-3	Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Type	Standard
IGBT Type	-	Gate Charge	87nC
Detailed Description	IGBT 1200V 86A 480W Through Hole TO-247 (IXYH)	Current - Collector Pulsed (Icm)	180A
Current - Collector (Ic) (Max)	86A
