IRG7PH50UPBF

International Rectifier (Infineon Technologies)

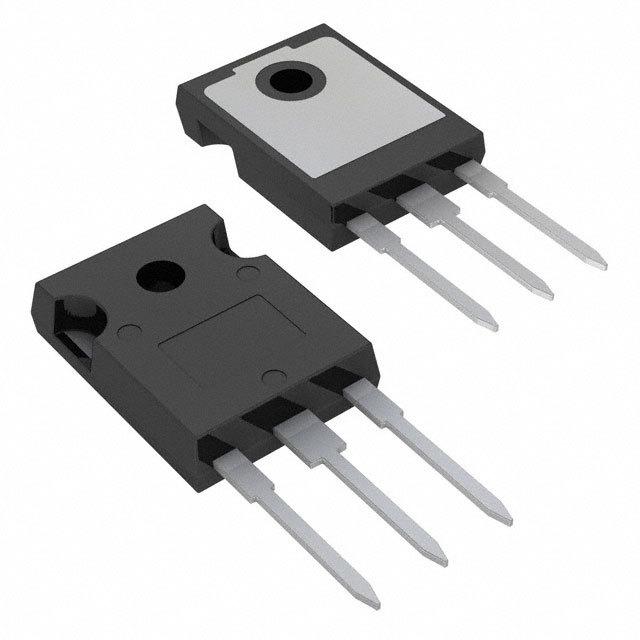

Image may be representation. See specifications for product details.

Product Overview

Part Number:	IRG7PH50UPBF
Manufacturer/Brand:	International Rectifier (Infineon Technologies)
Product description	IGBT 1200V 140A 556W TO247AC
Datasheets:	IRG7PH50UPBF.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	7713 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 7713 pcs

Reference Price (In US Dollars)

1 pcs: $4.362

25 pcs: $3.758

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$4.362

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of IRG7PH50UPBF

Part Number	IRG7PH50UPBF	Manufacturer	International Rectifier (Infineon Technologies)
Description	IGBT 1200V 140A 556W TO247AC	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	7713 pcs	Data sheet	IRG7PH50UPBF.pdf
Voltage - Collector Emitter Breakdown (Max)	1200V	Vce(on) (Max) @ Vge, Ic	2V @ 15V, 50A
Test Condition	600V, 50A, 5 Ohm, 15V	Td (on/off) @ 25°C	35ns/430ns
Switching Energy	3.6mJ (on), 2.2mJ (off)	Supplier Device Package	TO-247AC
Series	-	Power - Max	556W
Packaging	Tube	Package / Case	TO-247-3
Other Names	SP001541698	Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Type	Standard
IGBT Type	Trench	Gate Charge	290nC
Detailed Description	IGBT Trench 1200V 140A 556W Through Hole TO-247AC	Current - Collector Pulsed (Icm)	150A
Current - Collector (Ic) (Max)	140A
