LZ7-04M100

LED Engin

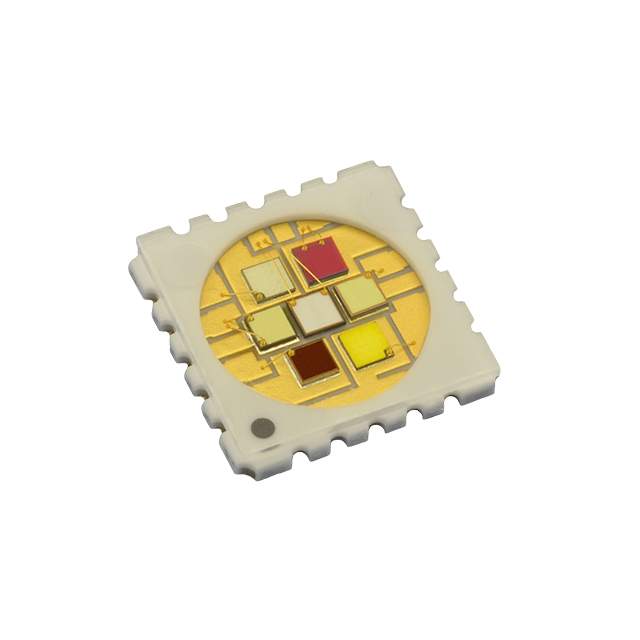

Image may be representation. See specifications for product details.

Product Overview

Part Number:	LZ7-04M100
Manufacturer/Brand:	LED Engin
Product description	LED EMITTER MULTI COLOR SMD
Datasheets:	LZ7-04M100.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5662 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 5662 pcs

Reference Price (In US Dollars)

100 pcs: $6.167

300 pcs: $5.848

500 pcs: $5.657

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$6.167

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of LZ7-04M100

Part Number	LZ7-04M100	Manufacturer	LED Engin
Description	LED EMITTER MULTI COLOR SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5662 pcs	Data sheet	LZ7-04M100.pdf
Wavelength	595nm Amber, 457nm Blue, 497nm Cyan, 525nm Green, 624nm Red, 395nm Violet, 6500K White	Voltage - Forward (Vf) (Typ)	2.5V Amber, 3.3V Blue, 3.45V Cyan, 3.7V Green, 2.5V Red, 3.7V Violet, 3.3V White
Viewing Angle	120°	Thermal Resistance of Package	1.4°C/W
Temperature - Test	25°C	Supplier Device Package	SMD
Size / Dimension	0.276" L x 0.276" W (7.00mm x 7.00mm)	Series	LuxiGen™
Packaging	Tape & Reel (TR)	Package / Case	2828 (7070 Metric)
Other Names	1537-1183-2 LZ7-04M100-0000	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lumens/Watt @ Current - Test	39 lm/W Amber, 14 lm/W Blue, 42 lm/W Cyan, 54 lm/W Green, 44 lm/W Red, 91 lm/W White
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	0.044" (1.11mm)
Flux @ Current/Temperature - Test	70 lm Amber, 33 lm Blue, 101 lm Cyan, 140 lm Green, 80 lm Red, 900mW Violet, 210 lm White	Detailed Description	LED Lighting Color LuxiGen™ Amber, Blue, Cyan, Green, Red, Violet, White - Cool 595nm Amber, 457nm Blue, 497nm Cyan, 525nm Green, 624nm Red, 395nm Violet, 6500K White 2828 (7070 Metric)
Current - Test	700mA Amber, 700mA Blue, 700mA Cyan, 700mA Green, 700mA Red, 700mA Violet, 700mA White	Current - Max	1A Amber, 1.5A Blue, 1A Cyan, 1.5A Green, 1.5A Red, 1A Violet, 1.5A White
Color	Amber, Blue, Cyan, Green, Red, Violet, White - Cool
