LF 505-S

LEM USA, Inc.

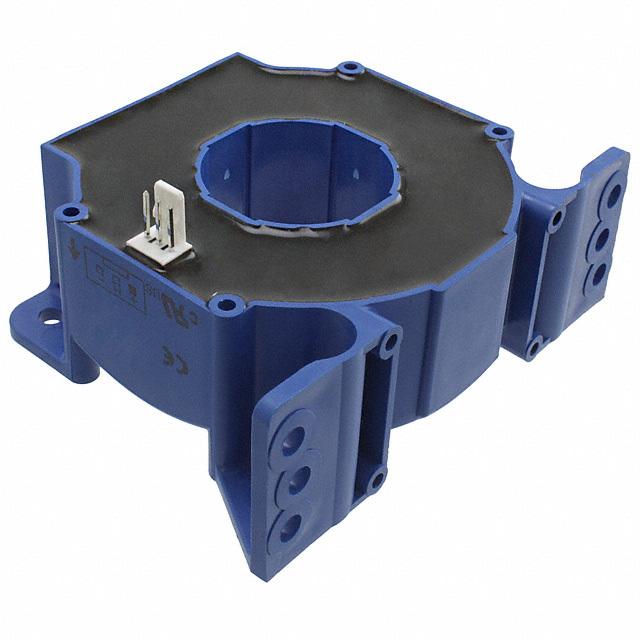

Image may be representation. See specifications for product details.

Product Overview

Part Number:	LF 505-S
Manufacturer/Brand:	LEM USA, Inc.
Product description	SENSOR CURRENT HALL 500A AC/DC
Datasheets:	LF 505-S.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	611 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 611 pcs

Reference Price (In US Dollars)

1 pcs: $55.633

9 pcs: $49.452

18 pcs: $46.361

27 pcs: $44.816

54 pcs: $43.27

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$55.633

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of LF 505-S

Part Number	LF 505-S	Manufacturer	LEM USA, Inc.
Description	SENSOR CURRENT HALL 500A AC/DC	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	611 pcs	Data sheet	LF 505-S.pdf
Voltage - Supply	±15 V ~ 24 V	Series	LF
Sensor Type	Hall Effect, Closed Loop	Sensitivity	-
Response Time	1µs	Polarization	Bidirectional
Packaging	Tray	Package / Case	Module
Output	Ratiometric, Current	Other Names	398-1118 90.14.50.000.0 LF 505-S-ND LF505S
Operating Temperature	-40°C ~ 70°C	Number of Channels	1
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Linearity	±0.1%	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency	DC ~ 100kHz	For Measuring	AC/DC
Detailed Description	Current Sensor 500A 1 Channel Hall Effect, Closed Loop Bidirectional Module	Current - Supply (Max)	124mA
Current - Sensing	500A	Accuracy	±0.6%
