APTM10AM02FG

Microsemi

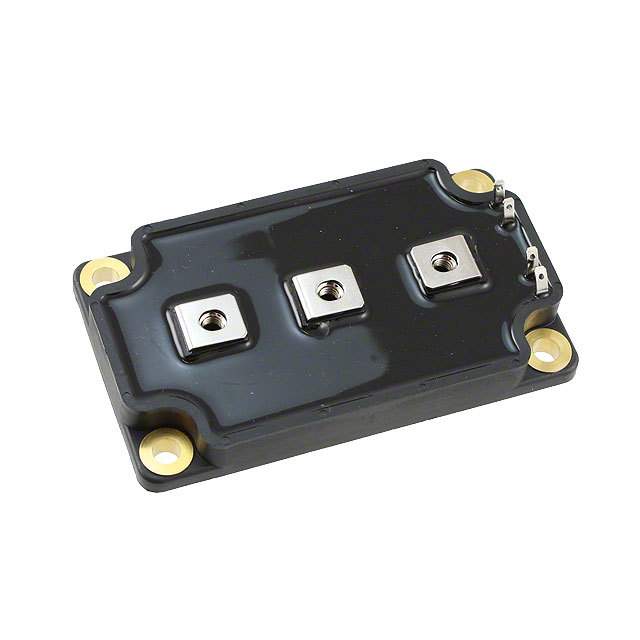

Image may be representation. See specifications for product details.

Product Overview

Part Number:	APTM10AM02FG
Manufacturer/Brand:	Microsemi
Product description	MOSFET 2N-CH 100V 495A SP6
Datasheets:	1.APTM10AM02FG.pdf 2.APTM10AM02FG.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	548 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 548 pcs

Reference Price (In US Dollars)

1 pcs: $68.393

10 pcs: $65.09

25 pcs: $62.731

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$68.393

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of APTM10AM02FG

Part Number	APTM10AM02FG	Manufacturer	Microsemi
Description	MOSFET 2N-CH 100V 495A SP6	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	548 pcs	Data sheet	1.APTM10AM02FG.pdf 2.APTM10AM02FG.pdf
Vgs(th) (Max) @ Id	4V @ 10mA	Supplier Device Package	SP6
Series	-	Rds On (Max) @ Id, Vgs	2.5 mOhm @ 200A, 10V
Power - Max	1250W	Packaging	Bulk
Package / Case	SP6	Other Names	APTM10AM02FGMI APTM10AM02FGMI-ND
Operating Temperature	-40°C ~ 150°C (TJ)	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds	40000pF @ 25V	Gate Charge (Qg) (Max) @ Vgs	1360nC @ 10V
FET Type	2 N-Channel (Half Bridge)	FET Feature	Standard
Drain to Source Voltage (Vdss)	100V	Detailed Description	Mosfet Array 2 N-Channel (Half Bridge) 100V 495A 1250W Chassis Mount SP6
Current - Continuous Drain (Id) @ 25°C	495A
