APTMC120AM08CD3AG

Microsemi

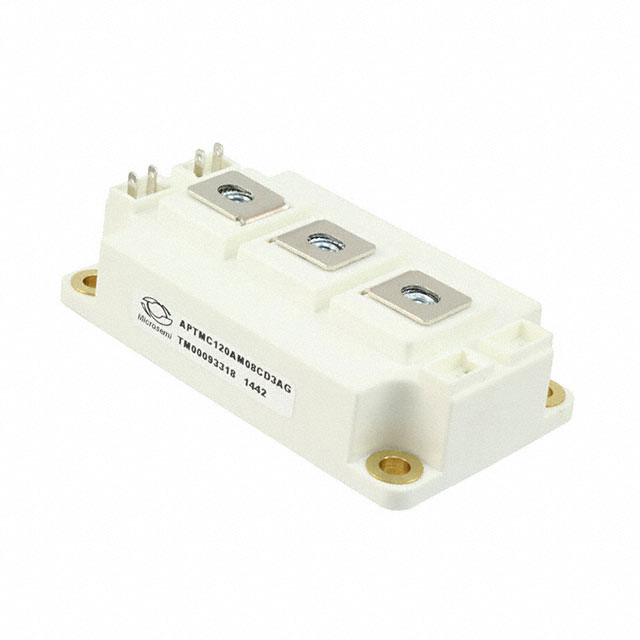

Image may be representation. See specifications for product details.

Product Overview

Part Number:	APTMC120AM08CD3AG
Manufacturer/Brand:	Microsemi
Product description	MOSFET 2N-CH 1200V 250A D3
Datasheets:	APTMC120AM08CD3AG.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	85 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 85 pcs

Reference Price (In US Dollars)

1 pcs: $450.053

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$450.053

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of APTMC120AM08CD3AG

Part Number	APTMC120AM08CD3AG	Manufacturer	Microsemi
Description	MOSFET 2N-CH 1200V 250A D3	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	85 pcs	Data sheet	APTMC120AM08CD3AG.pdf
Vgs(th) (Max) @ Id	2.2V @ 10mA (Typ)	Supplier Device Package	D3
Series	-	Rds On (Max) @ Id, Vgs	10 mOhm @ 200A, 20V
Power - Max	1100W	Packaging	Bulk
Package / Case	D-3 Module	Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Capacitance (Ciss) (Max) @ Vds	9500pF @ 1000V
Gate Charge (Qg) (Max) @ Vgs	490nC @ 20V	FET Type	2 N-Channel (Half Bridge)
FET Feature	Silicon Carbide (SiC)	Drain to Source Voltage (Vdss)	1200V (1.2kV)
Detailed Description	Mosfet Array 2 N-Channel (Half Bridge) 1200V (1.2kV) 250A (Tc) 1100W Chassis Mount D3	Current - Continuous Drain (Id) @ 25°C	250A (Tc)
