LQH55DN222M03L

Murata Electronics

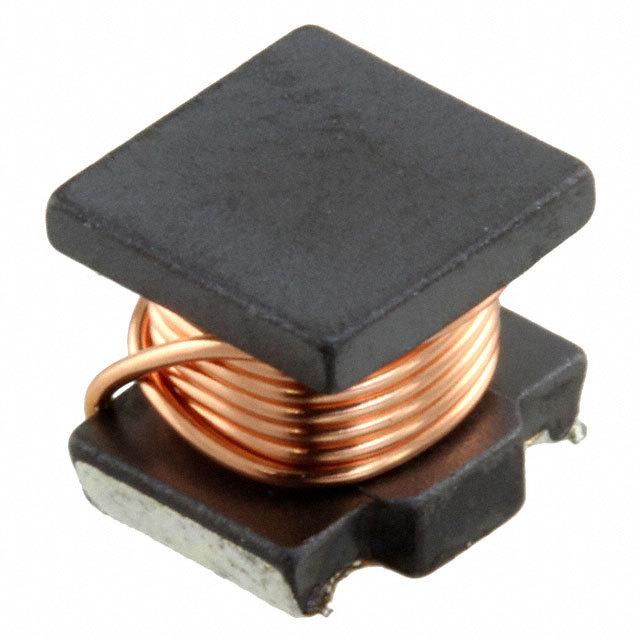

Image may be representation. See specifications for product details.

Product Overview

Part Number:	LQH55DN222M03L
Manufacturer/Brand:	Murata Electronics
Product description	FIXED IND 2.2MH 100MA 21.5 OHM
Datasheets:	1.LQH55DN222M03L.pdf 2.LQH55DN222M03L.pdf 3.LQH55DN222M03L.pdf 4.LQH55DN222M03L.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	50871 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 50871 pcs

Reference Price (In US Dollars)

1 pcs: $0.594

10 pcs: $0.547

100 pcs: $0.383

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.594

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of LQH55DN222M03L

Part Number	LQH55DN222M03L	Manufacturer	Murata Electronics
Description	FIXED IND 2.2MH 100MA 21.5 OHM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	50871 pcs	Data sheet	1.LQH55DN222M03L.pdf 2.LQH55DN222M03L.pdf 3.LQH55DN222M03L.pdf 4.LQH55DN222M03L.pdf
Type	Wirewound	Tolerance	±20%
Supplier Device Package	-	Size / Dimension	0.224" L x 0.197" W (5.70mm x 5.00mm)
Shielding	Unshielded	Series	LQH55
Ratings	-	Q @ Freq	-
Packaging	Cut Tape (CT)	Package / Case	2220 (5750 Metric)
Other Names	490-16864-1	Operating Temperature	-40°C ~ 80°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Core	Ferrite	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance Frequency - Test	10kHz	Inductance	2.2mH
Height - Seated (Max)	0.197" (5.00mm)	Frequency - Self Resonant	1.2MHz
Detailed Description	2.2mH Unshielded Wirewound Inductor 100mA 30.1 Ohm Max 2220 (5750 Metric)	DC Resistance (DCR)	30.1 Ohm Max
Current Rating	100mA	Current - Saturation	-
