GW12LJHD

NKK SwitchesNKK Switches

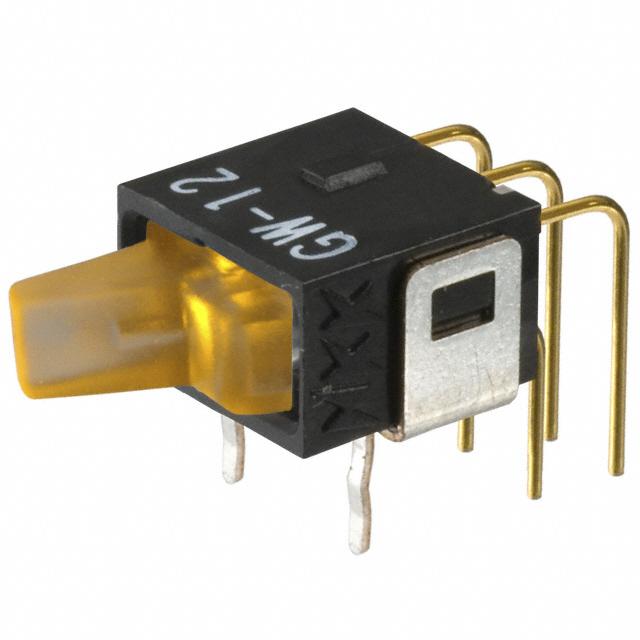

GW12LJHD Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: GW12LJHD
Manufacturer/Brand: NKK Switches
Product description SWITCH ROCKER SPDT 0.4VA 28V
Datasheets: GW12LJHD.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 18735 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 18735 pcs
Reference Price (In US Dollars)
1 pcs
$1.865
10 pcs
$1.777
25 pcs
$1.688
50 pcs
$1.599
100 pcs
$1.577
300 pcs
$1.533
500 pcs
$1.466
1000 pcs
$1.288
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$1.865

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of GW12LJHD

Part Number GW12LJHD Manufacturer NKK Switches
Description SWITCH ROCKER SPDT 0.4VA 28V Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 18735 pcs Data sheet GW12LJHD.pdf
Voltage Rating - DC 28V Voltage Rating - AC 28V
Termination Style PC Pin Switch Function On-On
Series GW Panel Cutout Dimensions -
Packaging Tray Other Names 360-2114
GW12LJHD-RO
Operating Temperature -25°C ~ 55°C Mounting Type Through Hole, Right Angle
Moisture Sensitivity Level (MSL) 1 (Unlimited) Mechanical Life 50,000 Cycles
Lead Free Status / RoHS Status Lead free / RoHS Compliant Ingress Protection -
Illumination Voltage (Nominal) 2 VDC Illumination Type, Color LED, Amber
Features Sealed - Flux Protection Electrical Life 50,000 Cycles
Detailed Description Rocker Switch SPDT 0.4VA (AC/DC) 28V Through Hole, Right Angle Current Rating 0.4VA (AC/DC)
Color - Actuator/Cap Clear Circuit SPDT
Actuator Type Paddle - Illuminated Actuator Marking No Marking
