M2023TXG45-DC

NKK Switches

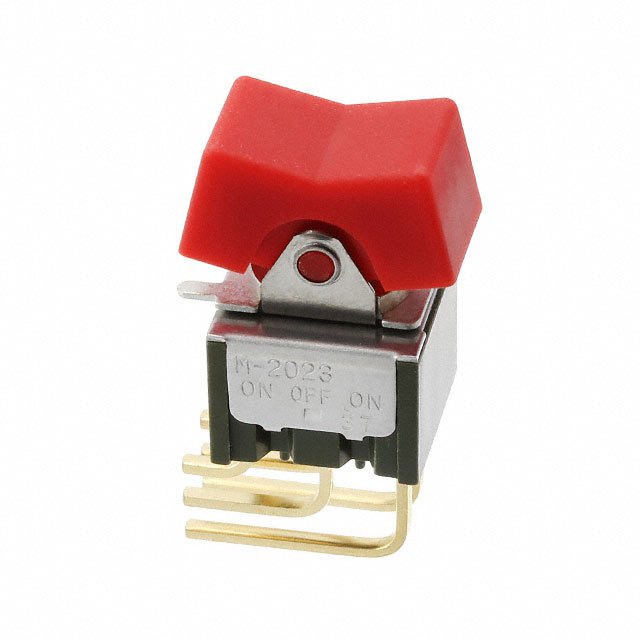

Image may be representation. See specifications for product details.

Product Overview

Part Number:	M2023TXG45-DC
Manufacturer/Brand:	NKK Switches
Product description	SWITCH ROCKER DPDT 0.4VA 28V
Datasheets:	M2023TXG45-DC.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	10793 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 10793 pcs

Reference Price (In US Dollars)

1 pcs: $3.024

10 pcs: $2.803

25 pcs: $2.655

50 pcs: $2.618

100 pcs: $2.581

250 pcs: $2.508

500 pcs: $2.286

1000 pcs: $2.065

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$3.024

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of M2023TXG45-DC

Part Number	M2023TXG45-DC	Manufacturer	NKK Switches
Description	SWITCH ROCKER DPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	10793 pcs	Data sheet	M2023TXG45-DC.pdf
Voltage Rating - DC	28V	Voltage Rating - AC	28V
Termination Style	PC Pin	Switch Function	On-Off-On
Series	M	Panel Cutout Dimensions	-
Packaging	Bulk	Other Names	M2023TXG45-DC-RO M2023TXG45-DC-RO-ND
Operating Temperature	-30°C ~ 85°C	Mounting Type	Through Hole, Right Angle, Vertical
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	50,000 Cycles
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	Epoxy Sealed Terminals	Electrical Life	50,000 Cycles
Detailed Description	Rocker Switch DPDT 0.4VA (AC/DC) 28V Through Hole, Right Angle, Vertical	Current Rating	0.4VA (AC/DC)
Color - Actuator/Cap	Red	Circuit	DPDT
Actuator Type	Concave (Standard V)	Actuator Marking	No Marking
