MS13LNW03F

NKK Switches

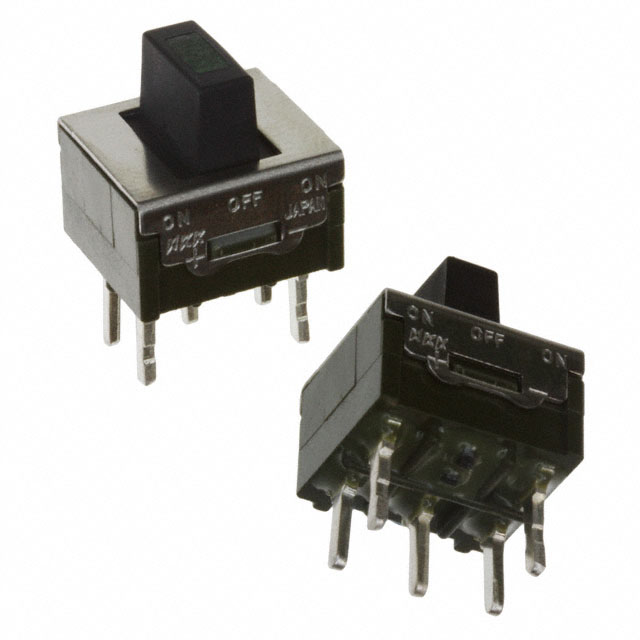

Image may be representation. See specifications for product details.

Product Overview

Part Number:	MS13LNW03F
Manufacturer/Brand:	NKK Switches
Product description	SWITCH SLIDE SPDT 6A 125V
Datasheets:	MS13LNW03F.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	8897 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 8897 pcs

Reference Price (In US Dollars)

1 pcs: $3.245

10 pcs: $3.207

25 pcs: $3.168

50 pcs: $2.898

100 pcs: $2.782

250 pcs: $2.627

500 pcs: $2.318

1000 pcs: $2.086

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.245

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of MS13LNW03F

Part Number	MS13LNW03F	Manufacturer	NKK Switches
Description	SWITCH SLIDE SPDT 6A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	8897 pcs	Data sheet	MS13LNW03F.pdf
Voltage Rating - AC	125V	Termination Style	PC Pin
Switch Travel	3.50mm	Switch Function	On-Off-On
Series	MS	Packaging	Bulk
Operating Temperature	-30°C ~ 85°C	Operating Force	-
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	100,000 Cycles	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Epoxy Sealed Terminals	Electrical Life	25,000 Cycles
Detailed Description	Slide Switch SPDT Through Hole	Current Rating	6A (AC)
Contact Timing	Non-Shorting (BBM)	Contact Material	Silver Alloy
Contact Finish	Silver	Circuit	SPDT
Actuator Type	Illuminated	Actuator Material	Polybutylene Terephthalate (PBT), Glass Filled
Actuator Length	5.10mm
