HomeProductsCapacitorsAluminum - Polymer CapacitorsPCR1C681MCL1GS

PCR1C681MCL1GS

NichiconNichicon

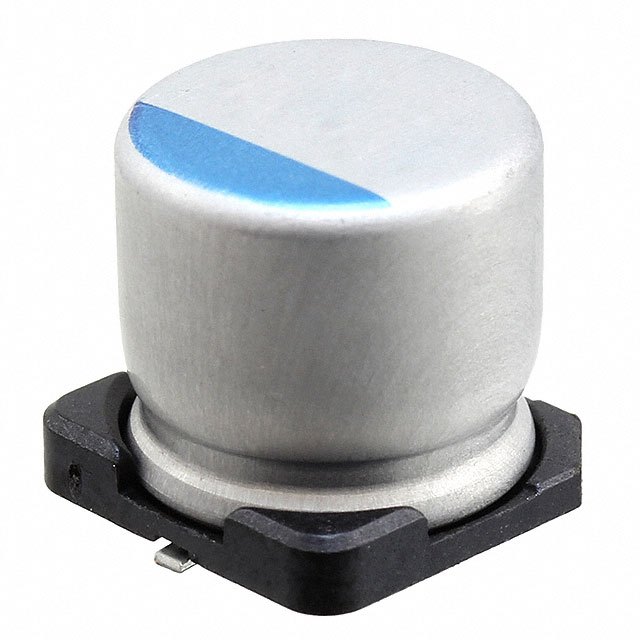

PCR1C681MCL1GS Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: PCR1C681MCL1GS
Manufacturer/Brand: Nichicon
Product description CAP ALUM POLY 680UF 20% 16V SMD
Datasheets: 1.PCR1C681MCL1GS.pdf2.PCR1C681MCL1GS.pdf3.PCR1C681MCL1GS.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 67986 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 67986 pcs
Reference Price (In US Dollars)
500 pcs
$0.539
1000 pcs
$0.472
2500 pcs
$0.455
5000 pcs
$0.438
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$0.539

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of PCR1C681MCL1GS

Part Number PCR1C681MCL1GS Manufacturer Nichicon
Description CAP ALUM POLY 680UF 20% 16V SMD Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 67986 pcs Data sheet 1.PCR1C681MCL1GS.pdf2.PCR1C681MCL1GS.pdf3.PCR1C681MCL1GS.pdf
Voltage - Rated 16V Type Polymer
Tolerance ±20% Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Size / Dimension 0.394" Dia (10.00mm) Series PCR
Ripple Current @ High Frequency 3.2A @ 100kHz Ratings -
Packaging Tape & Reel (TR) Package / Case Radial, Can - SMD
Other Names 493-13737-2 Operating Temperature -55°C ~ 125°C
Mounting Type Surface Mount Moisture Sensitivity Level (MSL) 1 (Unlimited)
Lifetime @ Temp. 4000 Hrs @ 125°C Lead Spacing -
Lead Free Status / RoHS Status Lead free / RoHS Compliant Height - Seated (Max) 0.398" (10.10mm)
ESR (Equivalent Series Resistance) 19 mOhm Detailed Description 680µF 16V Aluminum Polymer Capacitor Radial, Can - SMD 19 mOhm 4000 Hrs @ 125°C
Capacitance 680µF Applications General Purpose
