A22NS-3BM-NBA-G202-NN

Omron Automation & Safety

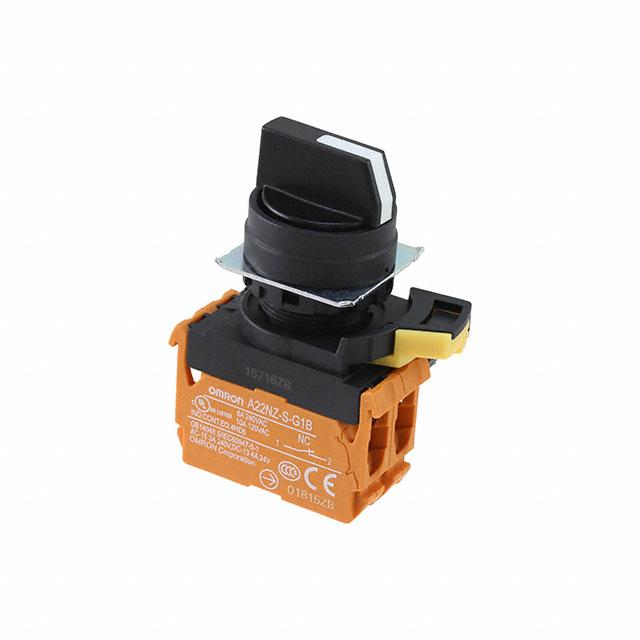

Image may be representation. See specifications for product details.

Product Overview

Part Number:	A22NS-3BM-NBA-G202-NN
Manufacturer/Brand:	Omron Automation & Safety
Product description	SWITCH SELECT 3POS DPST-NC 10A
Datasheets:	A22NS-3BM-NBA-G202-NN.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4748 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 4748 pcs

Reference Price (In US Dollars)

1 pcs: $6.347

10 pcs: $5.924

25 pcs: $5.84

50 pcs: $5.755

100 pcs: $5.078

250 pcs: $4.909

500 pcs: $4.824

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$6.347

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of A22NS-3BM-NBA-G202-NN

Part Number	A22NS-3BM-NBA-G202-NN	Manufacturer	Omron Automation & Safety
Description	SWITCH SELECT 3POS DPST-NC 10A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4748 pcs	Data sheet	A22NS-3BM-NBA-G202-NN.pdf
Voltage Rating - DC	24V	Voltage Rating - AC	120V
Type	Standard	Termination Style	Screw Terminal
Switch Function	Off-On-On, On-On-Off	Series	A22NS
Panel Cutout Dimensions	Circular - 22.30mm Dia	Other Names	A22NS-3BM-NBA-G202-NN-ND A22NS3BMNBAG202NN Z6186
Operating Temperature	-25°C ~ 70°C	Number of Positions	3
Mounting Type	Panel Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	300,000 Cycles	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP66 - Dust Tight, Water Resistant	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	Bezel - Round, Black Knob	Electrical Life	300,000 Cycles
Detailed Description	Selector Switch 3 Position DPST-NC 10A (AC), 8A (DC) 120V Panel Mount	Depth Behind Flange	45.30mm
Current Rating	10A (AC), 8A (DC)	Circuit	DPST-NC
Approvals	CCC, CE, cULus, TUV
