P0598NL

Pulse Electronics Corporation

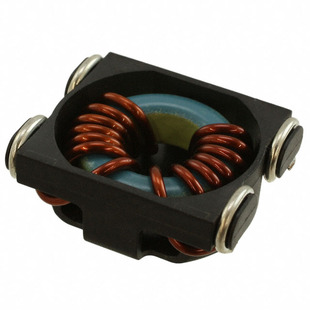

Image may be representation. See specifications for product details.

Product Overview

Part Number:	P0598NL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	INDUCT ARRAY 2 COIL 3.9UH SMD
Datasheets:	P0598NL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	26020 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 26020 pcs

Reference Price (In US Dollars)

1 pcs: $1.271

20 pcs: $1.167

100 pcs: $0.764

500 pcs: $0.679

1000 pcs: $0.636

2500 pcs: $0.615

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.271

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of P0598NL

Part Number	P0598NL	Manufacturer	Pulse Electronics Corporation
Description	INDUCT ARRAY 2 COIL 3.9UH SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	26020 pcs	Data sheet	P0598NL.pdf
Tolerance	±15%	Size / Dimension	1.220" L x 1.000" W (30.99mm x 25.40mm)
Shielding	Unshielded	Series	HCCI-80
Ratings	-	Packaging	Tube
Package / Case	Nonstandard	Other Names	553-2736 553-2736-5 553-2736-ND P0598NL-ND
Operating Temperature	-40°C ~ 130°C	Number of Coils	2
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance - Connected In Series	15.6µH
Inductance - Connected In Parallel	3.9µH	Height	0.500" (12.70mm)
Detailed Description	Unshielded 2 Coil Inductor Array 15.6µH Inductance - Connected in Series 3.9µH Inductance - Connected in Parallel 1.6 mOhm Max DC Resistance (DCR) - Parallel 34A Nonstandard	DC Resistance (DCR) - Series	6.4 mOhm Max
DC Resistance (DCR) - Parallel	1.6 mOhm Max	Current Rating - Series	17A
Current Rating - Parallel	34A
