Product Overview

Part Number:	PA1005.020QNL
Manufacturer/Brand:	Pulse Electronics Corporation

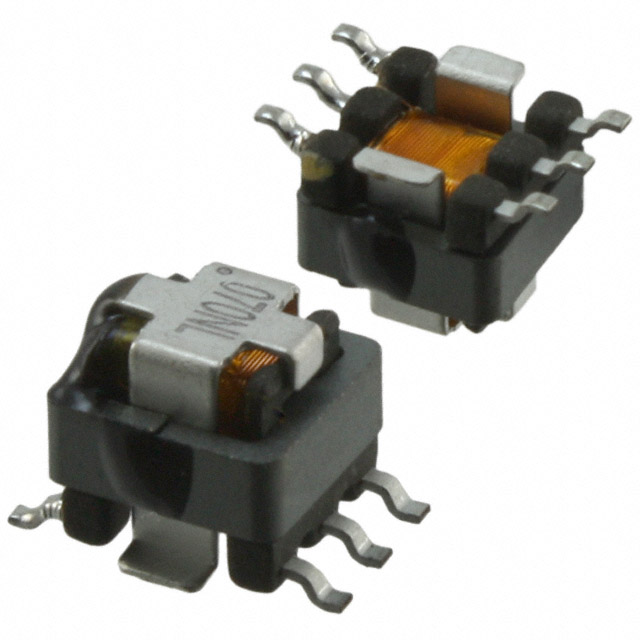

Product description	CURR SENSE XFMR 1:20 20A SMD
Datasheets:	PA1005.020QNL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	43210 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 43210 pcs

Reference Price (In US Dollars)

1 pcs: $0.664

10 pcs: $0.531

25 pcs: $0.431

50 pcs: $0.42

120 pcs: $0.409

360 pcs: $0.398

600 pcs: $0.395

1080 pcs: $0.35

5040 pcs: $0.321

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.664

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PA1005.020QNL

Part Number	PA1005.020QNL	Manufacturer	Pulse Electronics Corporation
Description	CURR SENSE XFMR 1:20 20A SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	43210 pcs	Data sheet	PA1005.020QNL.pdf
Weight	0.014 oz (0.4g)	Type	Invasive
Turns Ratio - Primary:Secondary	1:20	Termination Style	Gull Wing
Size / Dimension	0.284" L x 0.330" W (7.21mm x 8.38mm)	Series	-
Ratings	AEC-Q200	Packaging	Tray
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance	80µH
Height - Seated (Max)	0.217" (5.50mm)	Frequency Range	50kHz ~ 1MHz
Energy Time (E.T.)	-	Detailed Description	20A 1:20 Current Sense Transformer 50kHz ~ 1MHz 0.75 mOhm Primary, 550 mOhm Secondary 80µH Surface Mount
DC Resistance (DCR)	0.75 mOhm Primary, 550 mOhm Secondary	Current Ratio	-
Current Rating	20A
