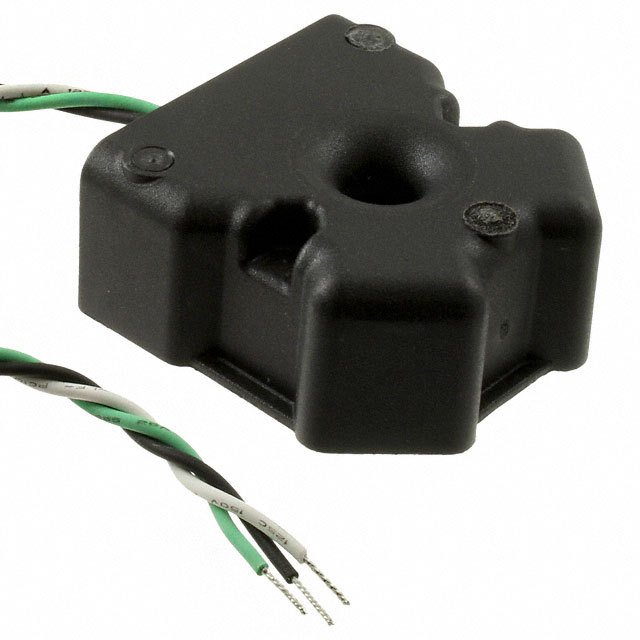

PA3208NL

Pulse Electronics Corporation

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PA3208NL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	CURR SENSE XFMR ROGOWSKI 100A
Datasheets:	PA3208NL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	15870 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 15870 pcs

Reference Price (In US Dollars)

1 pcs: $2.234

5 pcs: $1.97

20 pcs: $1.74

40 pcs: $1.412

60 pcs: $1.248

100 pcs: $1.215

500 pcs: $1.018

1000 pcs: $0.952

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$2.234

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PA3208NL

Part Number	PA3208NL	Manufacturer	Pulse Electronics Corporation
Description	CURR SENSE XFMR ROGOWSKI 100A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	15870 pcs	Data sheet	PA3208NL.pdf
Type	Non-Invasive (Solid Core)	Turns Ratio - Primary:Secondary	Rogowski Coil
Termination Style	Wire Leads	Size / Dimension	1.205" L x 1.189" W (30.60mm x 30.20mm)
Series	Sidewinder®, PA32XXNL	Ratings	-
Packaging	Tray	Other Names	553-2176
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance	1.14mH
Height - Seated (Max)	0.580" (14.73mm)	Frequency Range	50/60Hz
Energy Time (E.T.)	-	Detailed Description	100A Rogowski Coil Current Sense Transformer 50/60Hz 54 Ohm Max 1.14mH Chassis Mount
DC Resistance (DCR)	54 Ohm Max	Current Ratio	-
Current Rating	100A
