PA4349.222ANLT

Pulse Electronics Corporation

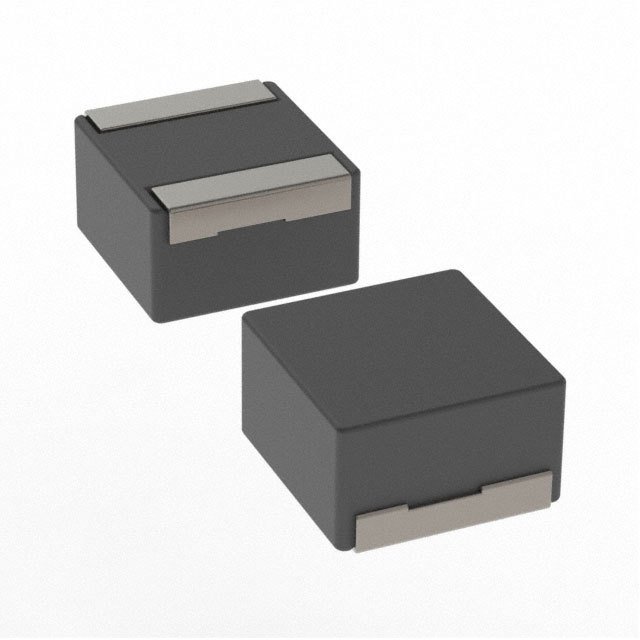

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PA4349.222ANLT
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	INDUCTOR 2.2 UH SMT 24 X 22.3
Datasheets:	PA4349.222ANLT.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	26844 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 26844 pcs

Reference Price (In US Dollars)

120 pcs: $1.415

360 pcs: $1.332

600 pcs: $1.29

840 pcs: $1.249

1200 pcs: $1.207

3000 pcs: $1.165

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.415

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PA4349.222ANLT

Part Number	PA4349.222ANLT	Manufacturer	Pulse Electronics Corporation
Description	INDUCTOR 2.2 UH SMT 24 X 22.3	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	26844 pcs	Data sheet	PA4349.222ANLT.pdf
Type	Molded	Tolerance	±20%
Supplier Device Package	-	Size / Dimension	0.925" L x 0.866" W (23.50mm x 22.00mm)
Shielding	Shielded	Series	PA4349.XXXANLT
Ratings	AEC-Q200	Q @ Freq	-
Packaging	Tape & Reel (TR)	Package / Case	Nonstandard
Other Names	553-4045-2	Operating Temperature	-55°C ~ 155°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Core	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance Frequency - Test	100kHz	Inductance	2.2µH
Height - Seated (Max)	0.512" (13.00mm)	Frequency - Self Resonant	-
Features	-	Detailed Description	2.2µH Shielded Molded Inductor 58A 1.25 mOhm Max Nonstandard
DC Resistance (DCR)	1.25 mOhm Max	Current Rating	58A
Current - Saturation	48A
