PF0553.153NL

Pulse Electronics Corporation

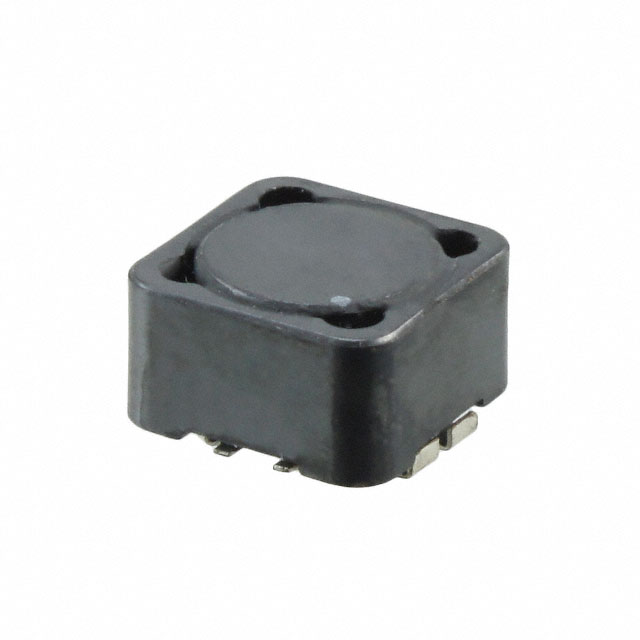

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PF0553.153NL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	INDUCT ARRAY 2 COIL 14UH SMD
Datasheets:	PF0553.153NL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	44407 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 44407 pcs

Reference Price (In US Dollars)

1 pcs: $0.709

60 pcs: $0.512

120 pcs: $0.457

540 pcs: $0.37

1020 pcs: $0.338

2520 pcs: $0.327

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.709

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PF0553.153NL

Part Number	PF0553.153NL	Manufacturer	Pulse Electronics Corporation
Description	INDUCT ARRAY 2 COIL 14UH SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	44407 pcs	Data sheet	PF0553.153NL.pdf
Tolerance	±20%	Size / Dimension	0.492" L x 0.492" W (12.50mm x 12.50mm)
Shielding	Shielded	Series	PF0553NL
Ratings	-	Packaging	Tray
Package / Case	Nonstandard	Other Names	553-3035
Operating Temperature	-40°C ~ 125°C	Number of Coils	2
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance - Connected In Series	56µH
Inductance - Connected In Parallel	14µH	Height	0.343" (8.71mm)
Detailed Description	Shielded 2 Coil Inductor Array 56µH Inductance - Connected in Series 14µH Inductance - Connected in Parallel 24 mOhm Max DC Resistance (DCR) - Parallel 5A Nonstandard	DC Resistance (DCR) - Series	96 mOhm Max
DC Resistance (DCR) - Parallel	24 mOhm Max	Current Saturation - Series	4.8A
Current Saturation - Parallel	9.6A	Current Rating - Series	2.5A
Current Rating - Parallel	5A
