HomeProductsCapacitorsTrimmers, Variable CapacitorsSGNMA3T20003

SGNMA3T20003

Sprague GoodmanSprague Goodman

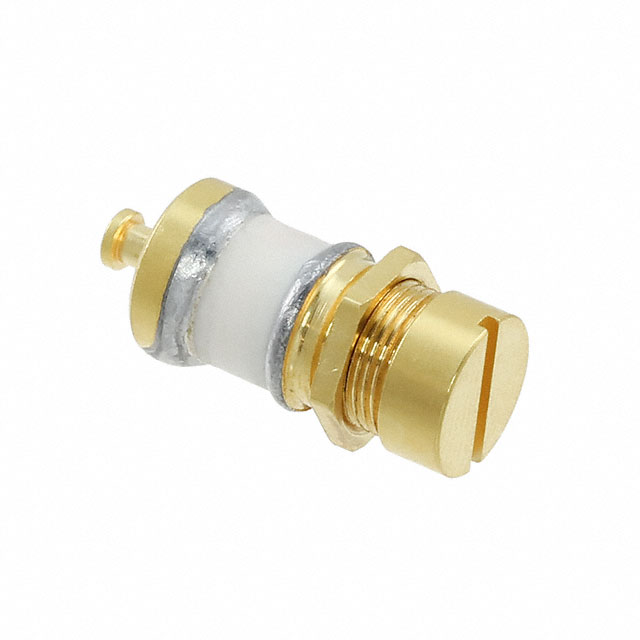

SGNMA3T20003 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: SGNMA3T20003
Manufacturer/Brand: Sprague Goodman
Product description CAP TRIMMER 2-20PF 1000V PNL MNT
Datasheets: SGNMA3T20003.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 1821 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 1821 pcs
Reference Price (In US Dollars)
1 pcs
$15.798
10 pcs
$14.921
100 pcs
$12.068
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$15.798

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of SGNMA3T20003

Part Number SGNMA3T20003 Manufacturer Sprague Goodman
Description CAP TRIMMER 2-20PF 1000V PNL MNT Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 1821 pcs Data sheet SGNMA3T20003.pdf
Voltage - Rated 1000V Size / Dimension 0.281" Dia (7.14mm)
Series SGNMA3T Q @ Freq 2000 @ 100MHz
Packaging Bulk Other Names SG9067
Operating Temperature -55°C ~ 125°C Mounting Type Panel Mount
Moisture Sensitivity Level (MSL) Not Applicable Lead Free Status / RoHS Status Lead free / RoHS Compliant
Height - Seated (Max) 0.533" (13.54mm) Features Non-Magnetic
Dielectric Material Polytetrafluoroethylene (PTFE) Detailed Description 2 ~ 20pF Trimmer Capacitor 1000V Top Panel Mount
Capacitance Range 2 ~ 20pF Adjustment Type Top
