CCT323047-100-16-02

TDK Corporation

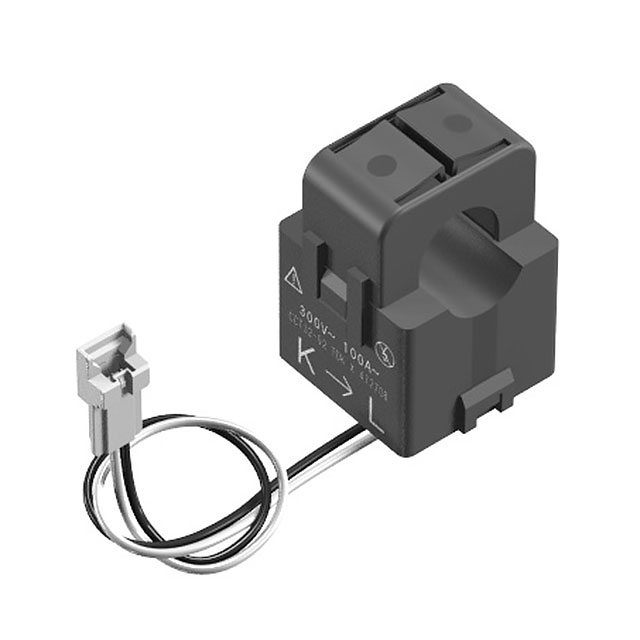

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CCT323047-100-16-02
Manufacturer/Brand:	TDK Corporation
Product description	CURR SENSE XFMR 100A CHAS MNT
Datasheets:	1.CCT323047-100-16-02.pdf 2.CCT323047-100-16-02.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	3006 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 3006 pcs

Reference Price (In US Dollars)

1 pcs: $11.358

5 pcs: $10.842

10 pcs: $9.81

25 pcs: $9.035

50 pcs: $8.003

100 pcs: $7.744

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$11.358

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CCT323047-100-16-02

Part Number	CCT323047-100-16-02	Manufacturer	TDK Corporation
Description	CURR SENSE XFMR 100A CHAS MNT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3006 pcs	Data sheet	1.CCT323047-100-16-02.pdf 2.CCT323047-100-16-02.pdf
Weight	0.155 lb (70.31g)	Type	Non-Invasive (Split Core)
Turns Ratio - Primary:Secondary	-	Termination Style	Wire Leads with Connector
Size / Dimension	1.378" L x 1.280" W (35.00mm x 32.50mm)	Series	CCT
Ratings	-	Packaging	Bulk
Other Names	445-172913	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	1.870" (47.50mm)	Frequency Range	50/60Hz
Energy Time (E.T.)	-	Detailed Description	100A Current Sense Transformer 50/60Hz 285 Ohm Chassis Mount
DC Resistance (DCR)	285 Ohm	Current Ratio	3000:1
Current Rating	100A
