PF24-20

TamuraTamura

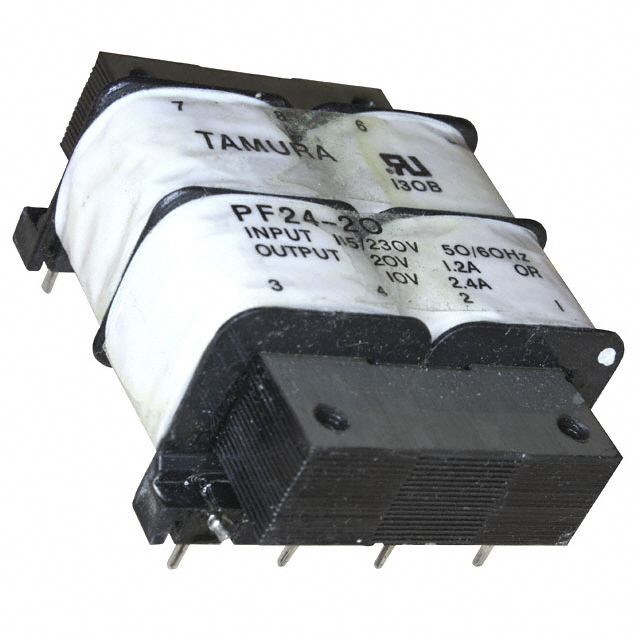

PF24-20 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: PF24-20
Manufacturer/Brand: Tamura
Product description XFRMR SEMI-TORO 24VA THRU HOLE
Datasheets: PF24-20.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 3833 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 3833 pcs
Reference Price (In US Dollars)
1 pcs
$8.587
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$8.587

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of PF24-20

Part Number PF24-20 Manufacturer Tamura
Description XFRMR SEMI-TORO 24VA THRU HOLE Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 3833 pcs Data sheet PF24-20.pdf
Weight - Voltage - Secondary (Full Load) Parallel 10V, Series 20V
Voltage - Primary 115V, 230V Voltage - Isolation 1500Vrms
Type Semi-Toroidal Termination Style PC Pin
Size / Dimension 72.00mm L x 58.00mm W Series PF24
Secondary Winding(s) Dual Primary Winding(s) Dual
Power - Max 24 VA Other Names MT1116
PF24-20(BOX)
PF24-20(BULK)
PF2420
Mounting Type Through Hole Moisture Sensitivity Level (MSL) 1 (Unlimited)
Lead Free Status / RoHS Status Lead free / RoHS Compliant Height - Seated (Max) 31.80mm
Current - Output (Max) Parallel 2.4A, Series 1.2A Center Tap No
