PL56-16-130B

Tamura

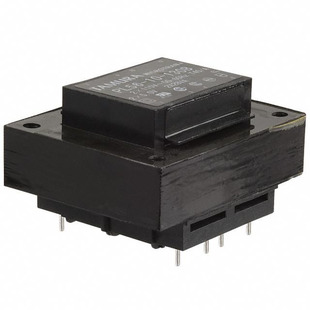

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PL56-16-130B
Manufacturer/Brand:	Tamura
Product description	XFRMR LAMINATED 56VA THRU HOLE
Datasheets:	PL56-16-130B.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4113 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 4113 pcs

Reference Price (In US Dollars)

1 pcs: $7.695

10 pcs: $6.791

25 pcs: $6.564

50 pcs: $5.885

100 pcs: $5.659

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$7.695

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PL56-16-130B

Part Number	PL56-16-130B	Manufacturer	Tamura
Description	XFRMR LAMINATED 56VA THRU HOLE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4113 pcs	Data sheet	PL56-16-130B.pdf
Weight	-	Voltage - Secondary (Full Load)	Parallel 8V, Series 16V
Voltage - Primary	115V, 230V	Voltage - Isolation	3500Vrms
Type	Laminated Core	Termination Style	PC Pin
Size / Dimension	76.20mm L x 64.00mm W	Series	PL56-xx-130B
Secondary Winding(s)	Dual	Primary Winding(s)	Dual
Power - Max	56 VA	Other Names	MT3118 PL56-16 PL56-16(BOX) PL56-16(BULK) PL5616130B
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	48.50mm
Current - Output (Max)	Parallel 7A, Series 3.5A	Center Tap	No
