TY-401P

Triad Magnetics

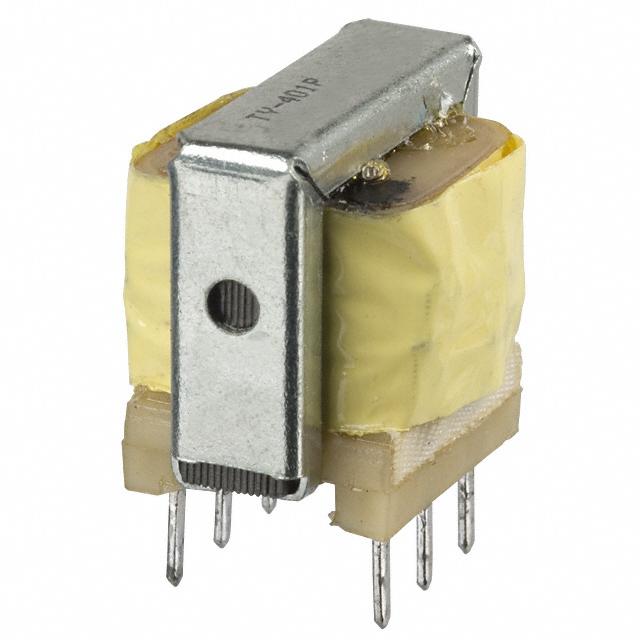

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TY-401P
Manufacturer/Brand:	Triad Magnetics
Product description	TRANSF 600 OHM CTAP 90MA DC TE
Datasheets:	TY-401P.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	20149 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 20149 pcs

Reference Price (In US Dollars)

1 pcs: $1.802

10 pcs: $1.368

25 pcs: $1.332

50 pcs: $1.224

100 pcs: $1.152

250 pcs: $1.116

500 pcs: $1.08

1000 pcs: $1.044

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$1.802

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TY-401P

Part Number	TY-401P	Manufacturer	Triad Magnetics
Description	TRANSF 600 OHM CTAP 90MA DC TE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	20149 pcs	Data sheet	TY-401P.pdf
Weight	-	Voltage - Isolation	1500VAC
Turns Ratio - Primary:Secondary	1:1.07	Transformer Type	Data/Voice Coupling
Termination Style	PC Pin	Size / Dimension	0.820" L x 0.715" W (20.83mm x 18.16mm)
Series	TY	Return Loss	15dB Typ
Power Level	-45dB ~ 7dB	Packaging	Bulk
Other Names	10625 237-1134	Operating Temperature	-
Mounting Type	Through Hole	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insertion Loss	1.75dB Typ	Impedance - Secondary (Ohms)	600CT
Impedance - Primary (Ohms)	600CT	Height - Seated (Max)	0.750" (19.05mm)
Frequency Response	±0.5dB	Frequency Range	300Hz ~ 3.5kHz
DC Resistance (DCR) - Secondary	-	DC Resistance (DCR) - Primary	-
Approvals	-
