D3428-5002-AR

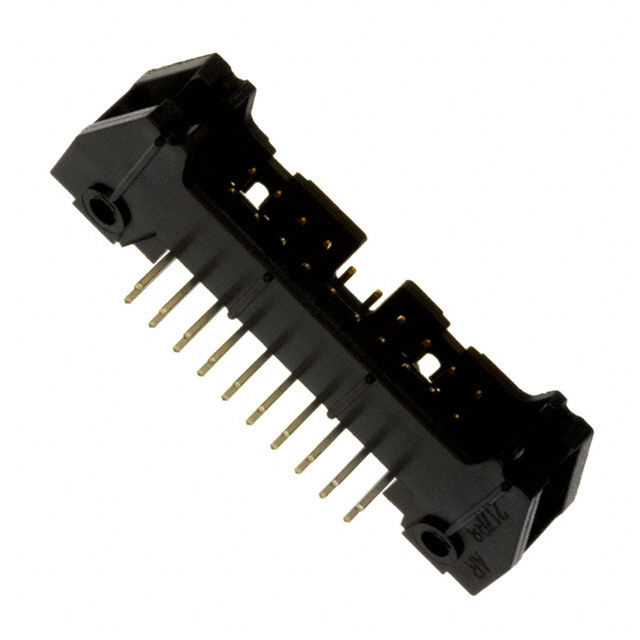

Image may be representation. See specifications for product details.

Product Overview

Part Number:	D3428-5002-AR
Manufacturer/Brand:	3M
Product description	CONN HDR 20POS R/A NO LATCH 10AU
Datasheets:	1.D3428-5002-AR.pdf 2.D3428-5002-AR.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	43238 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 43238 pcs

Reference Price (In US Dollars)

1 pcs: $0.759

10 pcs: $0.688

300 pcs: $0.534

600 pcs: $0.492

1200 pcs: $0.421

5100 pcs: $0.374

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.759

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of D3428-5002-AR

Part Number	D3428-5002-AR	Manufacturer	3M
Description	CONN HDR 20POS R/A NO LATCH 10AU	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	43238 pcs	Data sheet	1.D3428-5002-AR.pdf 2.D3428-5002-AR.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	D3000	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Tray
Overall Contact Length	-	Other Names	00051119907872 05111990787 3M156584 7010347810 80001205147 D34285002AR MHR20E MHR20E-ND
Operating Temperature	-55°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	20
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Insulation Height	0.340" (8.64mm)	Insulation Color	Black
Ingress Protection	-	Features	Keying Slot, Mounting Flange
Fastening Type	Push-Pull	Detailed Description	Connector Header Through Hole, Right Angle 20 position 0.100" (2.54mm)
Current Rating	1.75A	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Brass
Contact Length - Post	0.112" (2.84mm)	Contact Length - Mating	0.240" (6.10mm)
Contact Finish Thickness - Post	39.4µin (1.00µm)	Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold
Connector Type	Header	Applications	-
