ADRF6806ACPZ-R7

ADI (Analog Devices, Inc.)

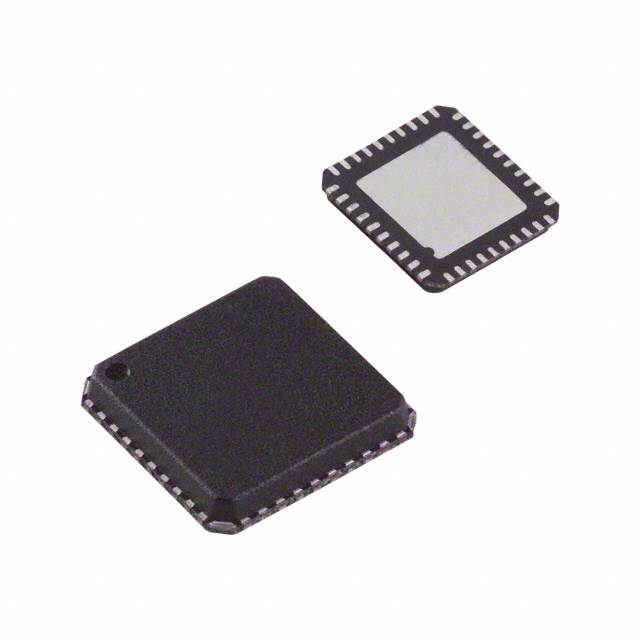

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ADRF6806ACPZ-R7
Manufacturer/Brand:	ADI (Analog Devices, Inc.)
Product description	RF DEMOD IC 50MHZ-525MHZ 40LFCSP
Datasheets:	ADRF6806ACPZ-R7.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4608 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 4608 pcs

Reference Price (In US Dollars)

1 pcs: $7.038

10 pcs: $6.499

100 pcs: $5.506

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$7.038

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ADRF6806ACPZ-R7

Part Number	ADRF6806ACPZ-R7	Manufacturer	ADI (Analog Devices, Inc.)
Description	RF DEMOD IC 50MHZ-525MHZ 40LFCSP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4608 pcs	Data sheet	ADRF6806ACPZ-R7.pdf
Voltage - Supply	4.75 V ~ 5.25 V	Supplier Device Package	40-LFCSP-VQ (6x6)
Series	-	RF Frequency	50MHz ~ 525MHz
Packaging	Original-Reel®	Package / Case	40-VFQFN Exposed Pad, CSP
P1dB	12.2dBm	Other Names	ADRF6806ACPZ-R7DKR
Noise Figure	12.2dB	Moisture Sensitivity Level (MSL)	3 (168 Hours)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	LO Frequency	50MHz ~ 525MHz
Gain	4.2dB	Function	Demodulator, Fractional-N PLL
Detailed Description	RF Demodulator IC 50MHz ~ 525MHz 40-VFQFN Exposed Pad, CSP	Current - Supply	86mA
Base Part Number	ADRF6806
