AWCCA-12R12H11-C01-B

Abracon Corporation

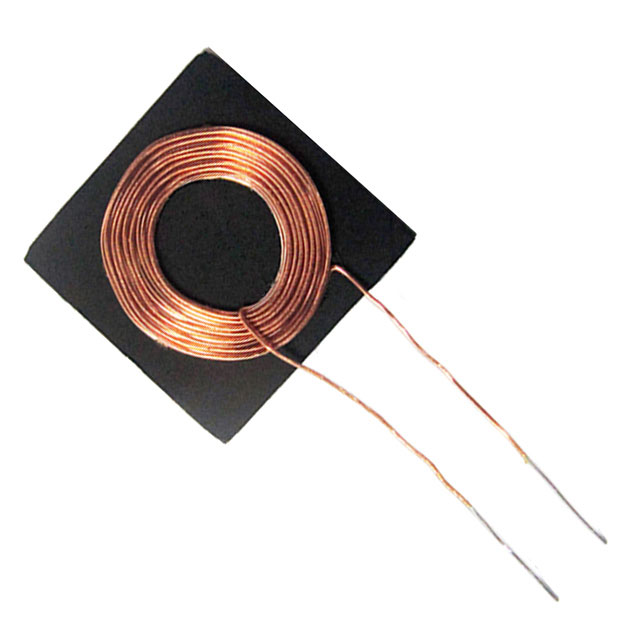

Image may be representation. See specifications for product details.

Product Overview

Part Number:	AWCCA-12R12H11-C01-B
Manufacturer/Brand:	Abracon Corporation
Product description	RX 1 COIL 1 LAYER 8UH
Datasheets:	AWCCA-12R12H11-C01-B.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	26161 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 26161 pcs

Reference Price (In US Dollars)

1 pcs: $1.342

10 pcs: $1.231

100 pcs: $0.805

500 pcs: $0.716

1000 pcs: $0.671

2500 pcs: $0.649

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.342

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of AWCCA-12R12H11-C01-B

Part Number	AWCCA-12R12H11-C01-B	Manufacturer	Abracon Corporation
Description	RX 1 COIL 1 LAYER 8UH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	26161 pcs	Data sheet	AWCCA-12R12H11-C01-B.pdf
Type	1 Coil, 1 Layer	Tolerance	±10%
Size / Dimension	0.47" L x 0.47" W x 0.04" H (12.0mm x 12.0mm x 1.1mm)	Series	AWCCA
Q @ Freq	10 @ 100kHz	Other Names	535-13306
Operating Temperature	-25°C ~ 85°C	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance	8µH
Function	Receiver	Frequency - Self Resonant	-
Detailed Description	1 Coil, 1 Layer 8µH Wireless Charging Coil Receiver 520 mOhm	DC Resistance (DCR)	520 mOhm
Current Rating	-	Current - Saturation	-
