ATS-PCBT1095

Advanced Thermal Solutions, Inc.Advanced Thermal Solutions, Inc.

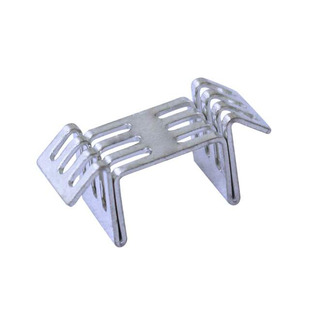

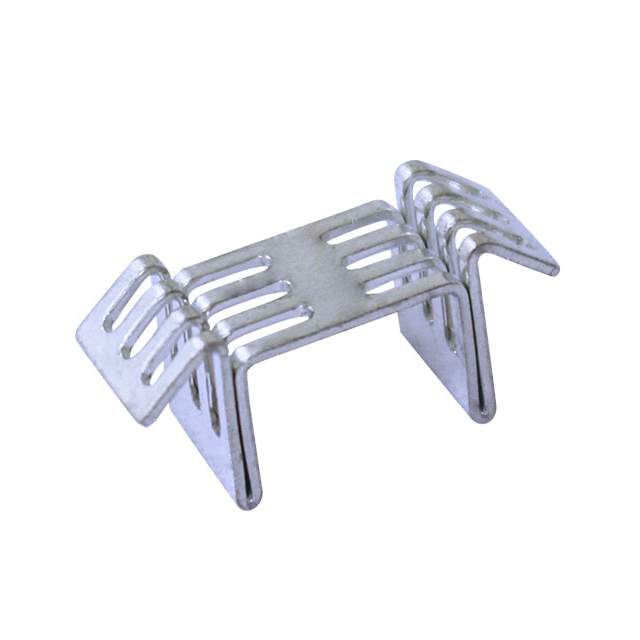

ATS-PCBT1095 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: ATS-PCBT1095
Manufacturer/Brand: Advanced Thermal Solutions, Inc.
Product description HEATSINK TO-252 D-PAK COPPER
Datasheets: ATS-PCBT1095.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 178553 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 178553 pcs
Reference Price (In US Dollars)
1 pcs
$0.179
10 pcs
$0.17
25 pcs
$0.162
50 pcs
$0.157
100 pcs
$0.155
250 pcs
$0.145
500 pcs
$0.136
1000 pcs
$0.123
5000 pcs
$0.119
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:Info@infinity-electronic.com
  • Target Price:
  • Qty:
Total:$0.179

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of ATS-PCBT1095

Part Number ATS-PCBT1095 Manufacturer Advanced Thermal Solutions, Inc.
Description HEATSINK TO-252 D-PAK COPPER Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 178553 pcs Data sheet ATS-PCBT1095.pdf
Width 0.842" (21.40mm) Type Top Mount
Thermal Resistance @ Natural 28.00°C/W Thermal Resistance @ Forced Air Flow 21.00°C/W @ 200 LFM
Shape Rectangular, Fins Series -
Power Dissipation @ Temperature Rise - Package Cooled TO-252 (DPak)
Other Names ATS2137 Moisture Sensitivity Level (MSL) 1 (Unlimited)
Material Finish Tin Material Copper
Length 0.315" (8.00mm) Lead Free Status / RoHS Status Lead free / RoHS Compliant
Height Off Base (Height of Fin) 0.400" (10.16mm) Diameter -
Detailed Description Heat Sink TO-252 (DPak) Copper Top Mount Attachment Method -
