1461798001

Affinity Medical Technologies - a Molex company

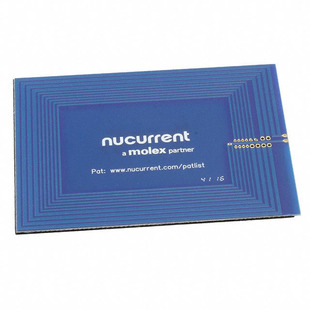

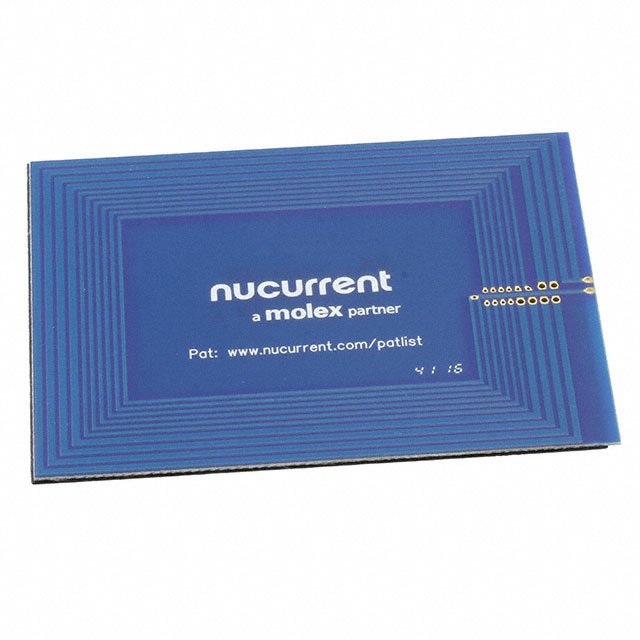

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1461798001
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	RX 1 COIL 1 LAYER 2.9UH
Datasheets:	1.1461798001.pdf 2.1461798001.pdf 3.1461798001.pdf 4.1461798001.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	9613 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 9613 pcs

Reference Price (In US Dollars)

1 pcs: $3.937

10 pcs: $3.64

100 pcs: $2.952

500 pcs: $2.755

1000 pcs: $2.617

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$3.937

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1461798001

Part Number	1461798001	Manufacturer	Affinity Medical Technologies - a Molex company
Description	RX 1 COIL 1 LAYER 2.9UH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	9613 pcs	Data sheet	1.1461798001.pdf 2.1461798001.pdf 3.1461798001.pdf 4.1461798001.pdf
Type	1 Coil, 1 Layer	Tolerance	±2%
Size / Dimension	2.236" L x 2.864" W x 0.037" H (56.80mm x 72.75mm x 0.95mm)	Series	NuCurrent, PowerLife, 146179
Q @ Freq	160 @ 6.78MHz	Other Names	146179-8001 WM15003
Operating Temperature	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance	2.9µH	Function	Receiver
Frequency - Self Resonant	-	Detailed Description	1 Coil, 1 Layer 2.9µH Wireless Charging Coil Receiver 120 mOhm
DC Resistance (DCR)	120 mOhm	Current Rating	-
Current - Saturation	-
