53048-1310

Affinity Medical Technologies - a Molex company

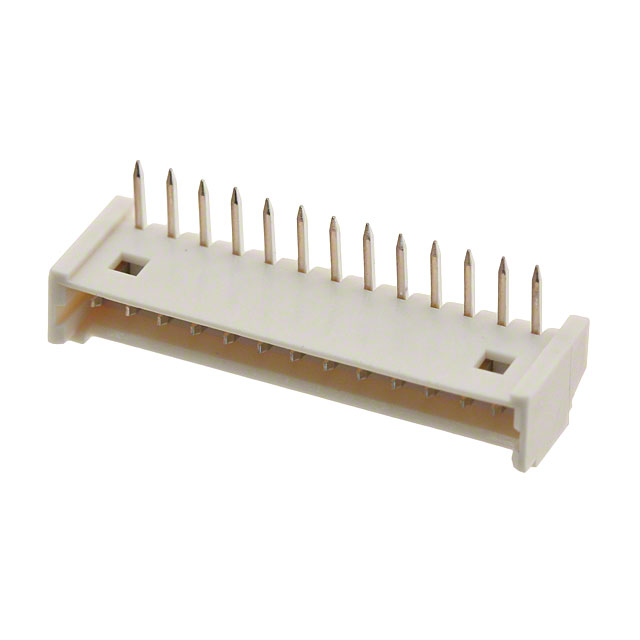

Image may be representation. See specifications for product details.

Product Overview

Part Number:	53048-1310
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 13POS 1.25MM R/A TIN
Datasheets:	53048-1310.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	62172 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 62172 pcs

Reference Price (In US Dollars)

1 pcs: $0.46

10 pcs: $0.403

100 pcs: $0.348

500 pcs: $0.284

1000 pcs: $0.253

5000 pcs: $0.221

10000 pcs: $0.21

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.46

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 53048-1310

Part Number	53048-1310	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 13POS 1.25MM R/A TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	62172 pcs	Data sheet	53048-1310.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	PicoBlade 53048	Row Spacing - Mating	-
Pitch - Mating	0.049" (1.25mm)	Packaging	Tray
Overall Contact Length	-	Other Names	0530481310 530-48-1310-P 53048-1310-C 53048-1310-CL100 53048-1310-P 530481310 WM17006
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	13
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyamide (PA), Nylon
Insulation Height	0.138" (3.50mm)	Insulation Color	Natural
Ingress Protection	-	Features	-
Fastening Type	Detent Lock	Detailed Description	Connector Header Through Hole, Right Angle 13 position 0.049" (1.25mm)
Current Rating	-	Contact Type	Male Blade
Contact Shape	Rectangular	Contact Material	Phosphor Bronze
Contact Length - Post	0.091" (2.30mm)	Contact Length - Mating	-
Contact Finish Thickness - Post	-	Contact Finish Thickness - Mating	-
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header	Applications	Automotive, General Purpose, Industrial, Medical
