1-104549-0

Agastat Relays / TE Connectivity

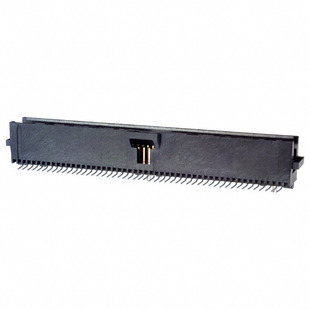

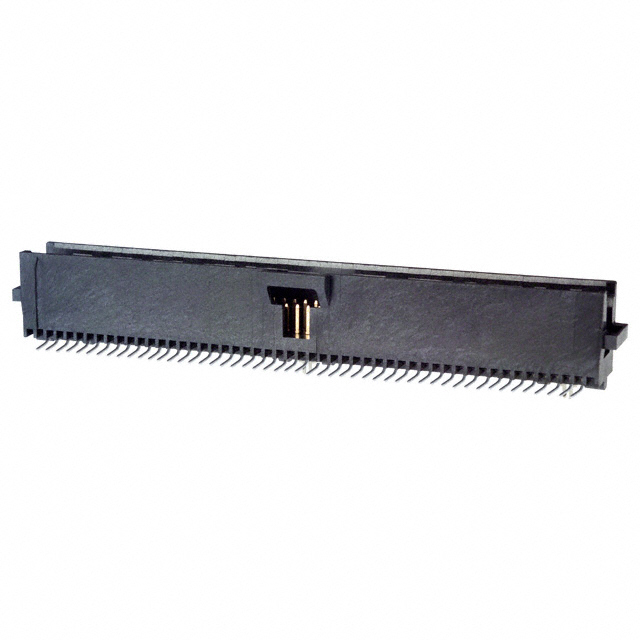

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1-104549-0
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER VERT .050 100POS AU
Datasheets:	1-104549-0.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	3981 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 3981 pcs

Reference Price (In US Dollars)

1 pcs: $7.281

14 pcs: $6.76

105 pcs: $5.20

504 pcs: $4.749

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$7.281

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1-104549-0

Part Number	1-104549-0	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER VERT .050 100POS AU	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	3981 pcs	Data sheet	1-104549-0.pdf
Voltage Rating	30VAC	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	AMPMODU System 50	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.050" (1.27mm)	Packaging	Tube
Overall Contact Length	-	Other Names	A3260
Operating Temperature	-65°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	100
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Insulation Material	Polyphthalamide (PPA)
Insulation Height	0.435" (11.05mm)	Insulation Color	Black
Ingress Protection	-	Features	Board Lock
Fastening Type	Latch Holder	Detailed Description	Connector Header Surface Mount 100 position 0.050" (1.27mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Circular	Contact Material	Copper Alloy
Contact Length - Post	-	Contact Length - Mating	0.125" (3.18mm)
Contact Finish Thickness - Post	150.0µin (3.81µm)	Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin-Lead	Contact Finish - Mating	Gold
Connector Type	Header	Applications	Automotive, General Purpose, Medical, Telecommunications
