1393277-9

Agastat Relays / TE Connectivity

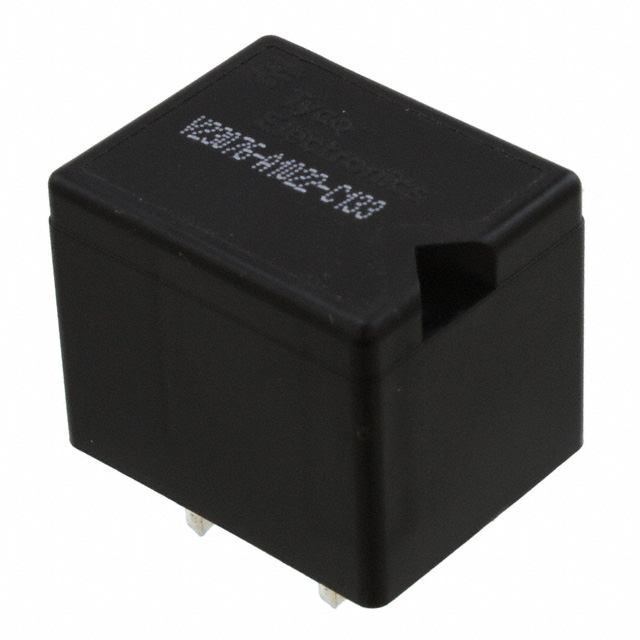

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1393277-9
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	RELAY AUTOMOTIVE SPDT 40A 24V
Datasheets:	1393277-9.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	16213 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 16213 pcs

Reference Price (In US Dollars)

1 pcs: $1.977

10 pcs: $1.897

25 pcs: $1.739

50 pcs: $1.66

100 pcs: $1.58

250 pcs: $1.383

500 pcs: $1.343

1000 pcs: $1.146

2500 pcs: $1.067

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$1.977

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1393277-9

Part Number	1393277-9	Manufacturer	Agastat Relays / TE Connectivity
Description	RELAY AUTOMOTIVE SPDT 40A 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	16213 pcs	Data sheet	1393277-9.pdf
Turn On Voltage (Max)	14.1 VDC	Turn Off Voltage (Min)	2.4 VDC
Termination Style	PC Pin	Switching Voltage	12VDC - Nom
Series	V23076	Release Time	3ms
Packaging	Bulk	Other Names	1393277-9-ND A127944
Operating Temperature	-40°C ~ 85°C	Operate Time	5ms
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Sealed
Contact Rating (Current)	40A	Contact Material	Silver Tin Oxide (AgSnO)
Contact Form	SPDT (1 Form C)	Coil Voltage	24VDC
Coil Type	Non Latching	Coil Resistance	362 Ohms
Coil Power	1.6 W	Coil Current	66.0mA
