5-104655-5

Agastat Relays / TE Connectivity

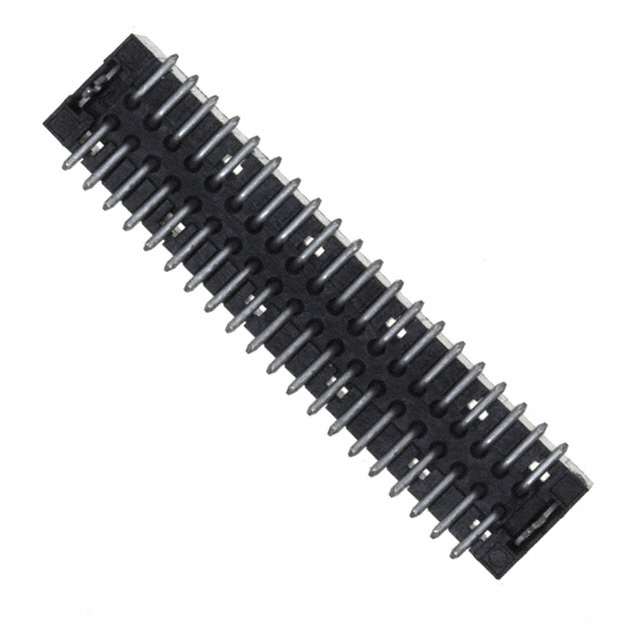

Image may be representation. See specifications for product details.

Product Overview

Part Number:	5-104655-5
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER 40POS .050 VERT SMD
Datasheets:	5-104655-5.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	10333 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 10333 pcs

Reference Price (In US Dollars)

1 pcs: $3.621

10 pcs: $3.463

100 pcs: $2.912

500 pcs: $2.44

1000 pcs: $2.157

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$3.621

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 5-104655-5

Part Number	5-104655-5	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER 40POS .050 VERT SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	10333 pcs	Data sheet	5-104655-5.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board	Shrouding	Shrouded - 4 Wall
Series	AMPMODU 50/50 Grid	Row Spacing - Mating	0.050" (1.27mm)
Pitch - Mating	0.050" (1.27mm)	Packaging	Tube
Overall Contact Length	-	Other Names	51046555 A99312
Operating Temperature	-65°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	40
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	6.35mm
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Liquid Crystal Polymer (LCP)
Insulation Height	0.226" (5.74mm)	Insulation Color	Black
Ingress Protection	-	Features	Board Lock
Fastening Type	Push-Pull	Detailed Description	Connector Header Surface Mount 40 position 0.050" (1.27mm)
Current Rating	0.5A per Contact	Contact Type	Male Pin
Contact Shape	Circular	Contact Material	Phosphor Bronze
Contact Length - Post	-	Contact Length - Mating	0.120" (3.05mm)
Contact Finish Thickness - Post	150.0µin (3.81µm)	Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold
Connector Type	Header	Applications	Automotive, General Purpose, Medical, Military, Telecommunications
