52601-S20-8LF

Amphenol FCI

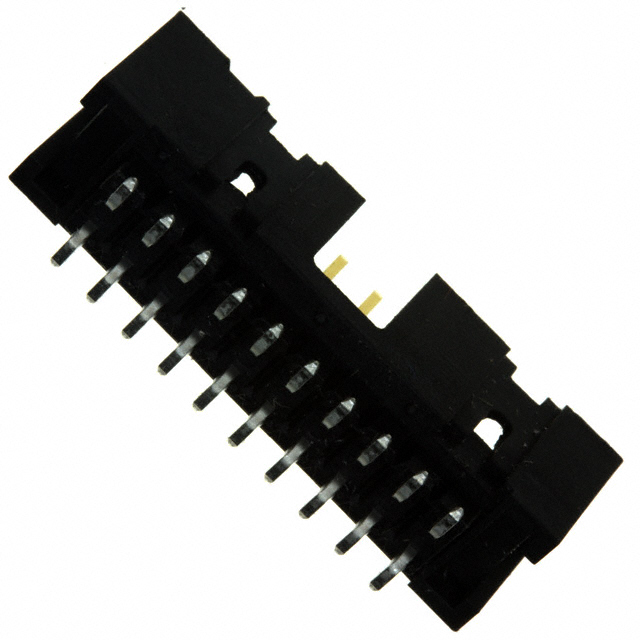

Image may be representation. See specifications for product details.

Product Overview

Part Number:	52601-S20-8LF
Manufacturer/Brand:	Amphenol Commercial (Amphenol ICC)
Product description	LP.100"SHRD HDR .100" VERT 15GLD
Datasheets:	52601-S20-8LF.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	31807 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 31807 pcs

Reference Price (In US Dollars)

1 pcs: $1.043

10 pcs: $1.002

126 pcs: $0.835

504 pcs: $0.71

1008 pcs: $0.606

5040 pcs: $0.543

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.043

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 52601-S20-8LF

Part Number	52601-S20-8LF	Manufacturer	Amphenol FCI
Description	LP.100"SHRD HDR .100" VERT 15GLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	31807 pcs	Data sheet	52601-S20-8LF.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	Quickie™	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Tray
Overall Contact Length	-	Other Names	52601-S20-8LF-ND 52601S208LF 609-3595
Operating Temperature	-65°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	20
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	-
Insulation Height	0.365" (9.27mm)	Insulation Color	Black
Ingress Protection	-	Features	-
Fastening Type	Push-Pull	Detailed Description	Connector Header Surface Mount 20 position 0.100" (2.54mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Phosphor Bronze
Contact Length - Post	-	Contact Length - Mating	0.230" (5.84mm)
Contact Finish Thickness - Post	100.0µin (2.54µm)	Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold or Gold, GXT™
Connector Type	Header	Applications	-
